Overview

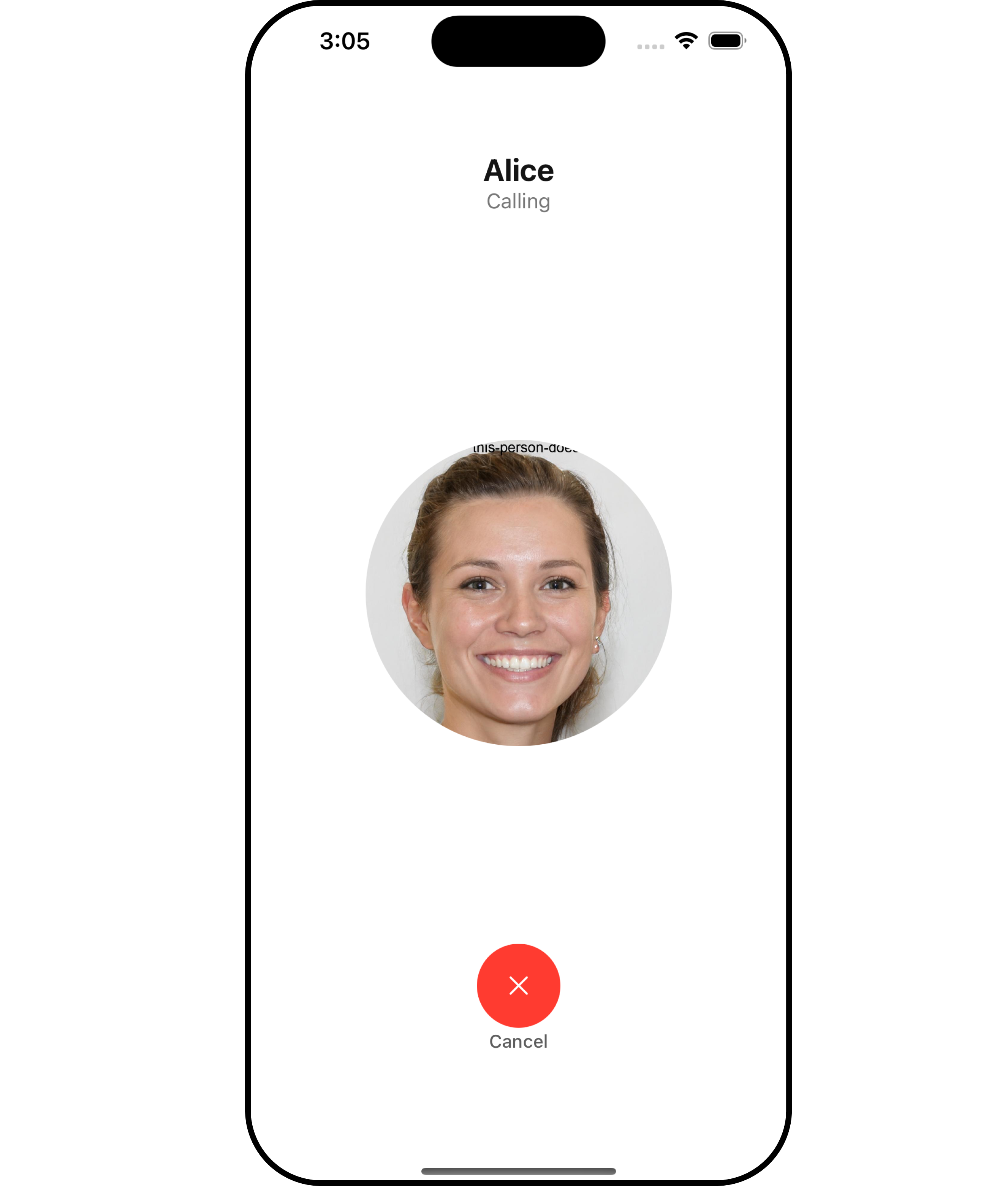

The Outgoing Call Component is a visual representation of a user-initiated call, whether it’s a voice or video call. It serves as an interface for managing outgoing calls, providing users with essential options to control the call experience. This component typically includes information about the call recipient, call controls for canceling the call, and feedback on the call status, such as indicating when the call is in progress.

​
Usage

​
Integration

CometChatOutgoingCall being a custom view controller, offers versatility in its integration. It can be seamlessly launched via button clicks or any user-triggered action, enhancing the overall user experience and facilitating smoother interactions within the application.
  • Swift
let cometChatOutgoingCall = CometChatOutgoingCall()
cometChatOutgoingCall.set(call: call)

cometChatOutgoingCall.modalPresentationStyle = .fullScreen
self.present(cometChatOutgoingCall, animated: true)
If you are already using a navigation controller, you can use the pushViewController function instead of presenting the view controller.

​
Actions

Actions dictate how a component functions. They are divided into two types: Predefined and User-defined. You can override either type, allowing you to tailor the behavior of the component to fit your specific needs.
1. SetOnCancelClick
The setOnCancelClick action is typically triggered when the call is ended, carrying out default actions. However, with the following code snippet, you can effortlessly customize or override this default behavior to meet your specific needs.
  • Swift
let cometChatOutgoingCall = CometChatOutgoingCall()
  .setOnCancelClick { call, controller in
  //Perform Your Action

}

​
Filters

Filters allow you to customize the data displayed in a list within a Component. You can filter the list based on your specific criteria, allowing for a more customized. Filters can be applied using RequestBuilders of Chat SDK. The OutgoingCall component does not have any exposed filters.

​
Events

Events are emitted by a Component. By using event you can extend existing functionality. Being global events, they can be applied in Multiple Locations and are capable of being Added or Removed. Events emitted by the Outgoing call component is as follows.
EventDescription
onOutgoingCallAcceptedTriggers when the outgoing call is accepted.
onOutgoingCallRejectedTriggers when the outgoing call is rejected.
  • Add Listener
// View controller from your project where you want to listen events.
public class ViewController: UIViewController {

   public override func viewDidLoad() {
        super.viewDidLoad()

       // Subscribing for the listener to listen events from user module
        CometChatCallEvents.addListener("UNIQUE_ID", self as CometChatCallEventListener)
    }

}
 // Listener events from user module
extension  ViewController: CometChatCallEventListener {

    func onOutgoingCallAccepted(call: Call) {
        // Do Stuff
    }

    func onOutgoingCallRejected(call: Call){
        // Do Stuff
    }
}
Emitting Group Events
//emit this when the other user accepts the call
CometChatCallEvents.emitOnOutgoingCallAccepted(call: Call)

//emit this when the other user rejects a call
CometChatCallEvents.emitOnOutgoingCallRejected(call: Call)
  • Remove Listener
View controller
public override func viewWillDisappear(_ animated: Bool) {
      // Uncubscribing for the listener to listen events from user module
      CometChatCallEvents.removeListener("LISTENER_ID_USED_FOR_ADDING_THIS_LISTENER")
}

​
Customization

To fit your app’s design requirements, you can customize the appearance of the conversation component. We provide exposed methods that allow you to modify the experience and behavior according to your specific needs.

​
Style

Using Style you can customize the look and feel of the component in your app, These parameters typically control elements such as the color, size, shape, and fonts used within the component.

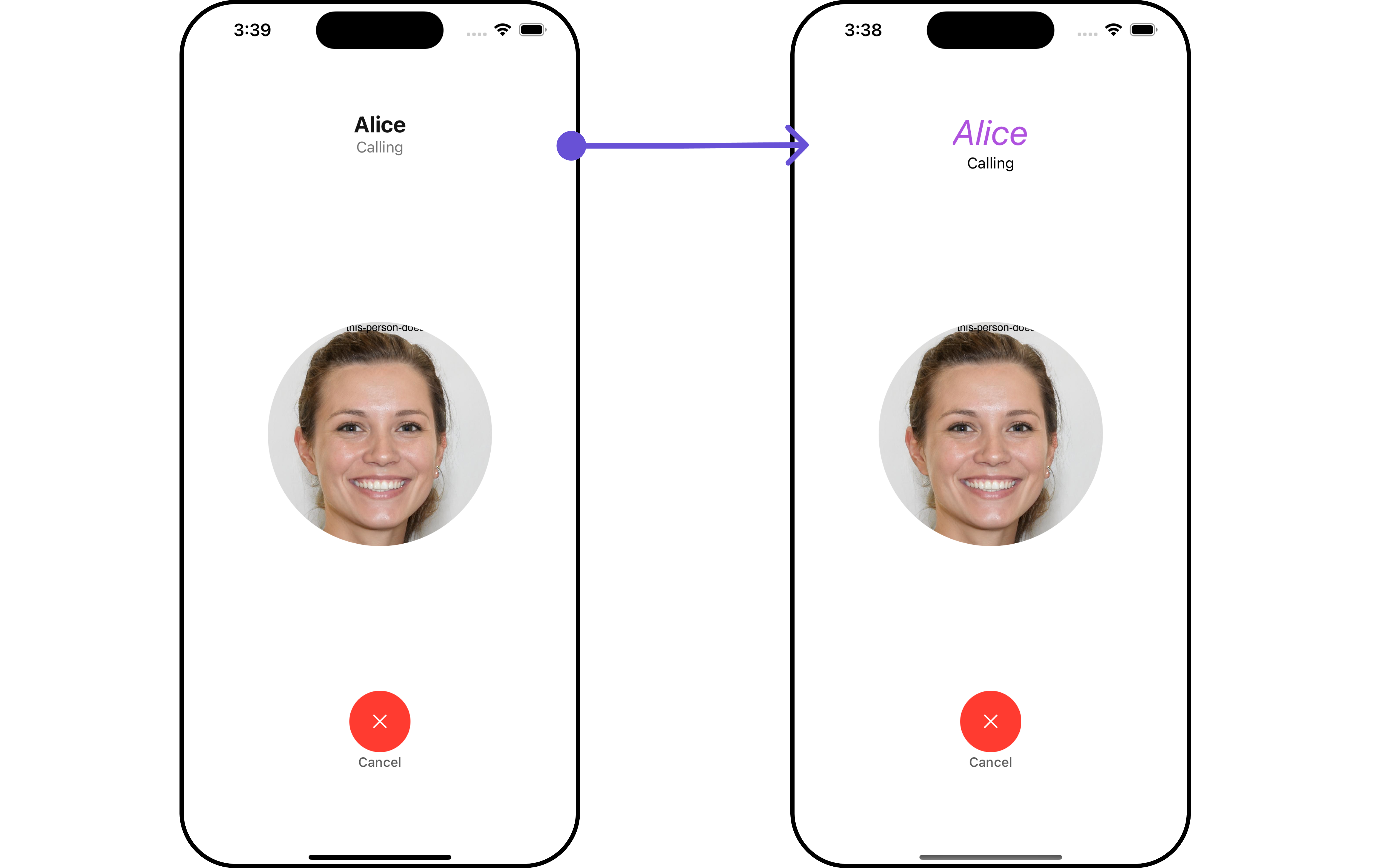

1. OutgoingCall Style
You can customize the appearance of the OutgoingCall Component by applying the OutgoingCallStyle to it using the following code snippet.
  • Swift
let outgoingcall = OutgoingCallStyle()
.set(subtitleColor: .black)
.set(titleColor: .orange)
.set(background: .cyan)
.set(cornerRadius: CometChatCornerStyle.init(cornerRadius: 8))

let cometChatOutgoingCall = CometChatOutgoingCall()
.set(outgoingCallStyle: outgoingCallStyle)
List of properties exposed by OutgoingCallStyle
PropertyDescriptionCode
set BackgroundSets the background color.set(background: UIColor)
set CornerRadiusSets the corner radius.set(cornerRadius: CometChatCornerStyle)
set BorderWidthSets the border width.set(borderWidth: CGFloat)
set BorderColorSets the border color.set(borderColor: UIColor)
set TitleColorSets the title color.set(titleColor: UIColor)
set TitleFontSets the title font.set(titleFont: UIFont)
set SubtitleColorSets the subtitle color.set(subtitleColor: UIColor)
set SubtitleFontSets the subtitle font.set(subtitleFont: UIFont)
2. Avatar Styles
To apply customized styles to the Avatar component in the OutgoingCall Component, you can use the following code snippet. For further insights on Avatar Styles refer
  • Swift
Swift
// Creating  AvatarStyle object
let avatarStyle = AvatarStyle()
.set(background: .red)
.set(textFont: .systemFont(ofSize: 18))
.set(textColor: .systemTeal)
.set(cornerRadius: CometChatCornerStyle(cornerRadius: 8.0))
.set(borderColor: .systemBlue)
.set(borderWidth: 5)
.set(outerViewWidth: 3)
.set(outerViewSpacing: 3)

let cometChatOutgoingCall = CometChatOutgoingCall()
.set(avatarStyle: avatarStyle)
3. Button Styles
To apply customized styles to the Button component in the OutgoingCall Component, you can use the following code snippet.
  • Swift
Swift
// Creating  AvatarStyle object
let buttonStyle = ButtonStyle()
.set(background: .red)
.set(textFont: .systemFont(ofSize: 18))
.set(textColor: .systemTeal)
.set(cornerRadius: CometChatCornerStyle(cornerRadius: 8.0))
.set(borderColor: .systemBlue)
.set(borderWidth: 5)
.set(iconBackground: .systemTeal)
.set(iconBorder: 6)
.set(iconCornerRadius: 10)
.set(iconTint: .blue)

let cometChatOutgoingCall = CometChatOutgoingCall()
.set(buttonStyle: buttonStyle)
Ensure to pass and present CometChatOutgoingCall. If a navigation controller is already in use, utilize the pushViewController function instead of directly presenting the view controller.

​
Functionality

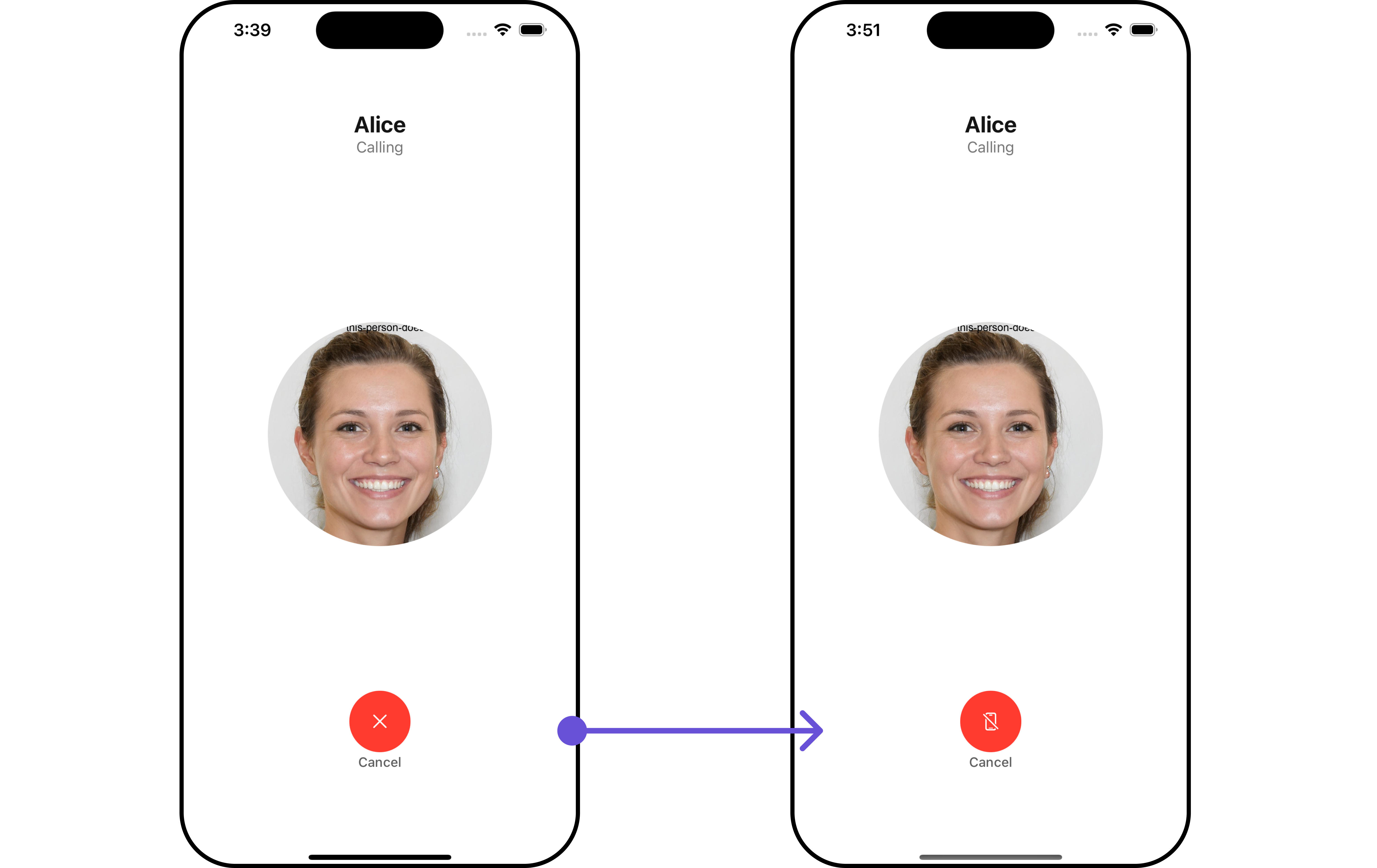

These are a set of small functional customizations that allow you to fine-tune the overall experience of the component. With these, you can change text, set custom icons, and toggle the visibility of UI elements. Example In this example, we’re enhancing the interface by customizing the decline button icons. By setting custom icons for decline buttons, users can enjoy a more visually appealing and personalized experience. This level of customization allows developers to tailor the user interface to match the overall theme and branding of their application.
  • Swift
View controller
import UIKit
import CometChatSDK
import CometChatUIKitSwift
import CometChatCallsSDK

class ViewController: UIViewController, CometChatCallDelegate {
    func onIncomingCallReceived(incomingCall: CometChatSDK.Call?, error: CometChatSDK.CometChatException?) {

    }

    func onOutgoingCallAccepted(acceptedCall: CometChatSDK.Call?, error: CometChatSDK.CometChatException?) {

    }

    func onOutgoingCallRejected(rejectedCall: CometChatSDK.Call?, error: CometChatSDK.CometChatException?) {

    }

    func onIncomingCallCancelled(canceledCall: CometChatSDK.Call?, error: CometChatSDK.CometChatException?) {

    }

    override func viewDidLoad() {
        super.viewDidLoad()

        CometChat.calldelegate = self

        let receiverID = "your-uid"
        let receiverType: CometChat.ReceiverType = .user
        let callType: CometChat.CallType = .audio

        let newCall = Call(receiverId: receiverID, callType: callType, receiverType: receiverType)

        CometChat.initiateCall(call: newCall, onSuccess: { (ongoing_call) in
            print("Call initiated successfully " + ongoing_call!.stringValue())

            DispatchQueue.main.async {
                let cometChatOutgoingCall = CometChatOutgoingCall()
                    .set(declineButtonIcon: UIImage(systemName: "iphone.slash")!)
                    .set(call: ongoing_call!)

                cometChatOutgoingCall.modalPresentationStyle = .fullScreen

                self.present(cometChatOutgoingCall, animated: true)
            }
        },             onError: { (error) in

            print("Call initialization failed with error:  \(error!.errorDescription)")
        })
    }
}
If you are already using a navigation controller, you can use the pushViewController function instead of presenting the view controller.
Below is a list of customizations along with corresponding code snippets
PropertyDescriptionCode
CallSets the Call object for CometChatOutgoingCall..set(call: Call)
SoundForCallsDisables the default sound for calls..disable(soundForCalls: Bool)
CustomSoundForCallsSets a custom sound for calls..set(customSoundForCalls: URL?)
DeclineButtonIconSets the icon for the decline button in the call screen..set(declineButtonIcon: UIImage)
UserSets the User object for CometChatOutgoingCall..set(user: User)

​
Advanced

For advanced-level customization, you can set custom views to the component. This lets you tailor each aspect of the component to fit your exact needs and application aesthetics. You can create and define your views, layouts, and UI elements and then incorporate those into the component. The OutgoingCall component does not provide additional functionalities beyond this level of customization.
