Overview

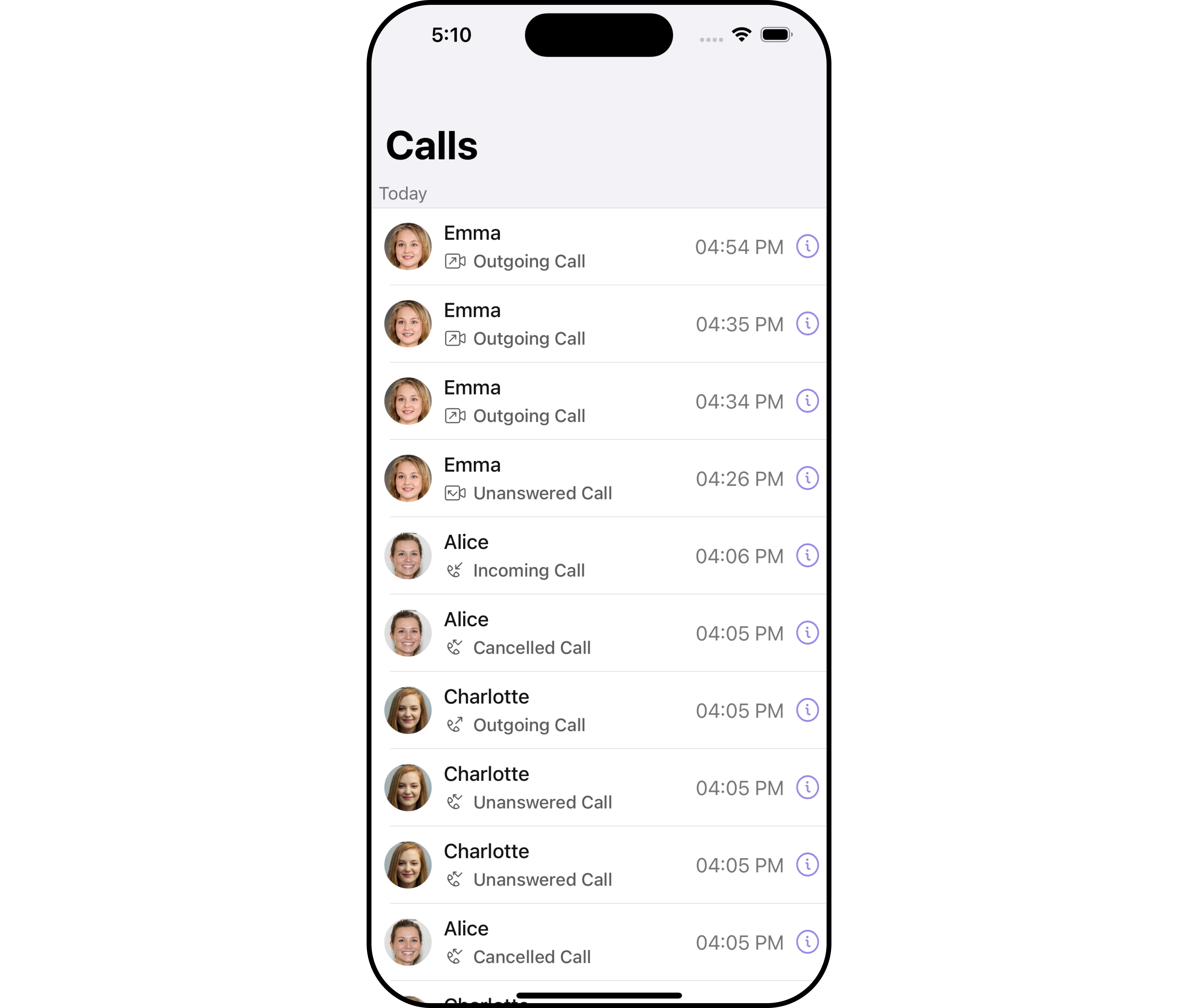

CometChatCallLogs is a Component that shows the list of Call Log available . By default, names are shown for all listed users, along with their avatar if available.

The Call Logs component is composed of the following BaseComponents:

Components	Description
CometChatListBase	`CometChatListBase` is a container component featuring a title, customizable background options, and a dedicated list view for seamless integration within your application’s interface.
CometChatListItem	This component displays data retrieved from a CallLog object on a card, presenting a title and subtitle.

Usage

Integration

CometChatCallLogs being a custom view controller, offers versatility in its integration. It can be seamlessly launched via button clicks or any user-triggered action, enhancing the overall user experience and facilitating smoother interactions within the application.

Swift

// To navigate to the CometChatCallLogs
let callLogs = CometChatCallLogs()
self.navigationController?.pushViewController(callLogs, animated: true)

Actions

Actions dictate how a component functions. They are divided into two types: Predefined and User-defined. You can override either type, allowing you to tailor the behavior of the component to fit your specific needs.

1. OnItemClick

This method proves valuable when users seek to override onItemClick functionality within CometChatCallLogs, empowering them with greater control and customization options. The setOnItemClick action doesn’t have a predefined behavior. You can override this action using the following code snippet.

Swift

let callLogsConfiguration = CallLogsConfiguration()
.set (onItemClick:{ callLog in
//Perform Your Action

})

2. OnError

You can customize this behavior by using the provided code snippet to override the On Error and improve error handling.

Swift

let callLogsConfiguration = CallLogsConfiguration()
    .set (onError:{ error in
    //Perform Your Action

})

Filters

Filters allow you to customize the data displayed in a list within a Component. You can filter the list based on your specific criteria, allowing for a more customized. Filters can be applied using RequestBuilders of Chat SDK.

1. CallRequestBuilder

The callRequestBuilder enables you to filter and customize the call list based on available parameters in callRequestBuilder. This feature allows you to create more specific and targeted queries during the call. The following are the parameters available in callRequestBuilder

Method	Description	Code
fetchPrevious	Fetches previous call logs	`fetchPrevious(authToken: String, onSuccess: (([CallLog]) -> Void), onError: (_ error: CometChatCallException?) -> Void)`
fetchNext	Fetches next call logs	`fetchNext(onSuccess: (([CallLog]) -> Void), onError: (_ error: CometChatCallException?) -> Void)`
limit	Sets the limit for the call logs request	`.set(limit: Int)`
callType	Sets the call type for the call logs request	`.set(callType: CallType)`
callStatus	Sets the call status for the call logs request	`.set(callStatus: CallStatus)`
hasRecording	Sets the recording status for the call logs request	`.set(hasRecording: Bool)`
callDirection	Sets the call direction for the call logs request	`.set(callDirection: CallDirection)`
uid	Sets the user ID for the call logs request	`.set(uid: String)`
guid	Sets the group ID for the call logs request	`.set(guid: String)`
authToken	Sets the auth token for the call logs request	`.set(authToken: String?)`
build	Builds the call logs request	`.build()`

Example In the example below, we are applying a filter based on limit , calltype and call status.

Swift

let callRequestBuilder = CallLogsRequest.CallLogsBuilder()
.set(limit: 2)
.set(callType: .audio)
.set(callStatus: .initiated)

// To navigate to the CometChatCallLogs
let callLogs = CometChatCallLogs()
.set(callRequestBuilder: callRequestBuilder)

self.navigationController?.pushViewController(callLogs, animated: true)

Events

Events are emitted by a Component. By using event you can extend existing functionality. Being global events, they can be applied in Multiple Locations and are capable of being Added or Removed. The Call Logs component does not have any exposed events.

Customization

To fit your app’s design requirements, you can customize the appearance of the conversation component. We provide exposed methods that allow you to modify the experience and behavior according to your specific needs.

Style

Using Style you can customize the look and feel of the component in your app, These parameters typically control elements such as the color, size, shape, and fonts used within the component.

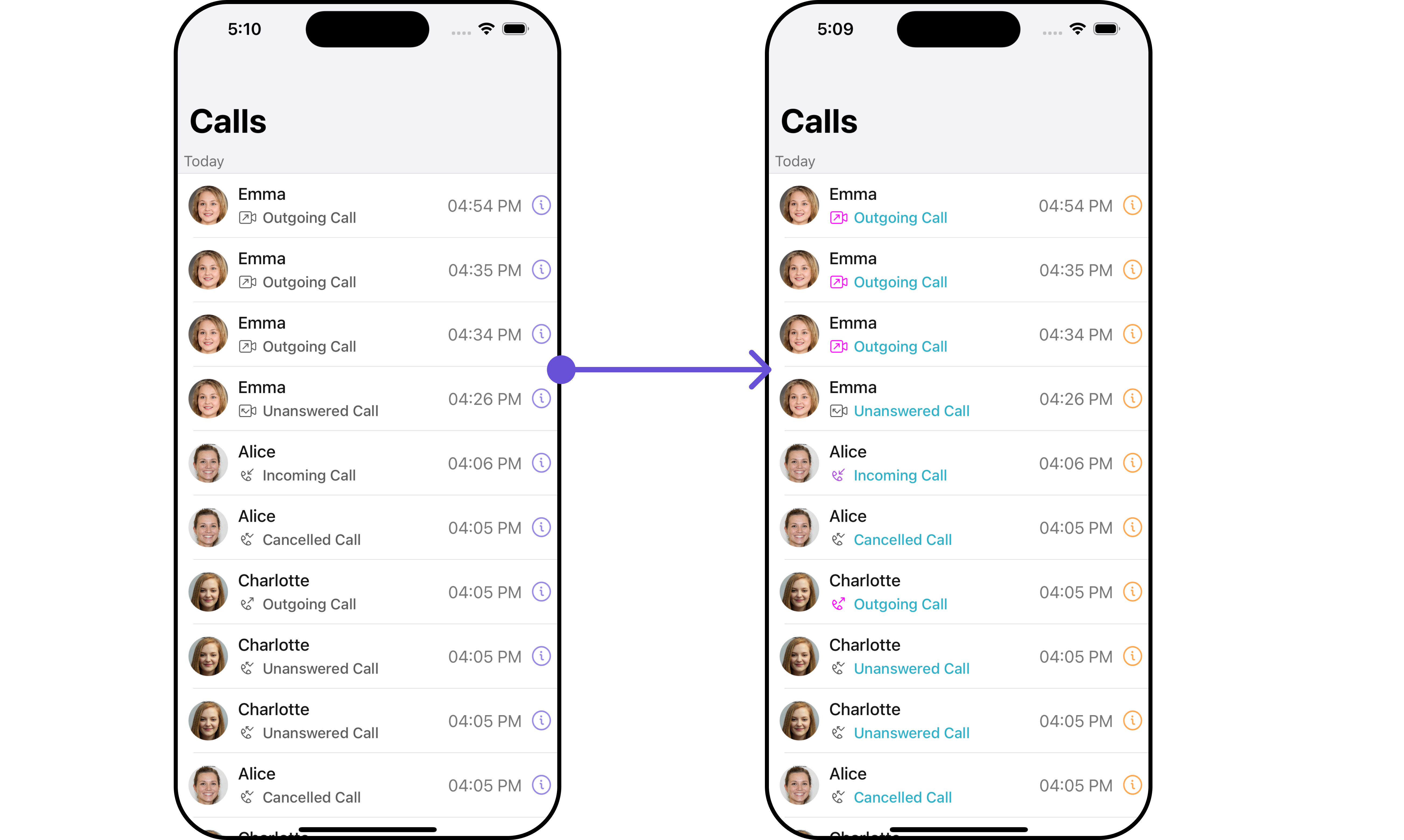

1. CallLog Style

You can customize the appearance of the CallLog Component by applying the CallLogStyle to it using the following code snippet.

Swift

let callLogStyle = CallLogStyle()
.set(background: .blue)
.set(callStatusIconTint: .red)
.set(callTimeTextColor: .systemTeal)
.set(infoIconTint: .orange)
.set(borderColor: .green)
.set(incomingCallIconTint: .systemPurple)
.set(outgoingCallIconTint: .magenta)

let callLogsConfiguration = CallLogsConfiguration()
.set(style: callLogStyle)

// To navigate to the CometChatCallLogs
let callLogs = CometChatCallLogs()
.set(configuration: callLogsConfiguration)

List of properties exposed by CallLogStyle

Property	Description	Code
callStatusTextFont	Sets the call status font	`.set(callStatusTextFont: UIFont)`
missedCallTitleTint	Sets the missed call color	`.set(missedCallTitleTint: UIColor)`
callTimeTextFont	Sets the call time font	`.set(callTimeTextFont: UIFont)`
dateSeparatorTextFont	Sets the date separator font	`.set(dateSeparatorTextFont: UIFont)`
emptyStateTextFon	Sets the empty state font	`.set(emptyStateTextFont: UIFont)`
errorStateTextFont	Sets the error state font	`.set(errorStateTextFont: UIFont)`
callStatusTextColor	Sets the call status color	`.set(callStatusTextColor: UIColor)`
callStatusIconTint	Sets the call status icon tint	`.set(callStatusIconTint: UIColor)`
callTimeTextColor	Sets the call time color	`.set(callTimeTextColor: UIColor)`
dateSeparatorTextColor	Sets the date separator color	`.set(dateSeparatorTextColor: UIColor)`
missedCallIconTint	Sets the missed call icon tint	`.set(missedCallIconTint: UIColor)`
outgoingCallIconTint	Sets the outgoing call icon tint	`.set(outgoingCallIconTint: UIColor)`
incomingCallIconTint	Sets the incoming call icon tint	`.set(incomingCallIconTint: UIColor)`
emptyStateTextColor	Sets the empty state color	`.set(emptyStateTextColor: UIColor)`
errorStateTextColor	Sets the error state color	`.set(errorStateTextColor: UIColor)`
infoIconTint	Sets the info icon tint	`.set(infoIconTint: UIColor)`

2. Avatar Styles

To apply customized styles to the Avatar component in the CallLogs Component, you can use the following code snippet. For further insights on Avatar Styles refer

Swift

Swift

// Creating  AvatarStyle object
let avatarStyle = AvatarStyle()
.set(background: .red)
.set(textFont: .systemFont(ofSize: 18))
.set(textColor: .systemTeal)
.set(cornerRadius: CometChatCornerStyle(cornerRadius: 8.0))
.set(borderColor: .systemBlue)
.set(borderWidth: 5)
.set(outerViewWidth: 3)
.set(outerViewSpacing: 3)

let callLogsConfiguration = CallLogsConfiguration()
.set(avatarStyle: avatarStyle)

// To navigate to the CometChatCallLogs
let callLogs = CometChatCallLogs()
.set(configuration: callLogsConfiguration)

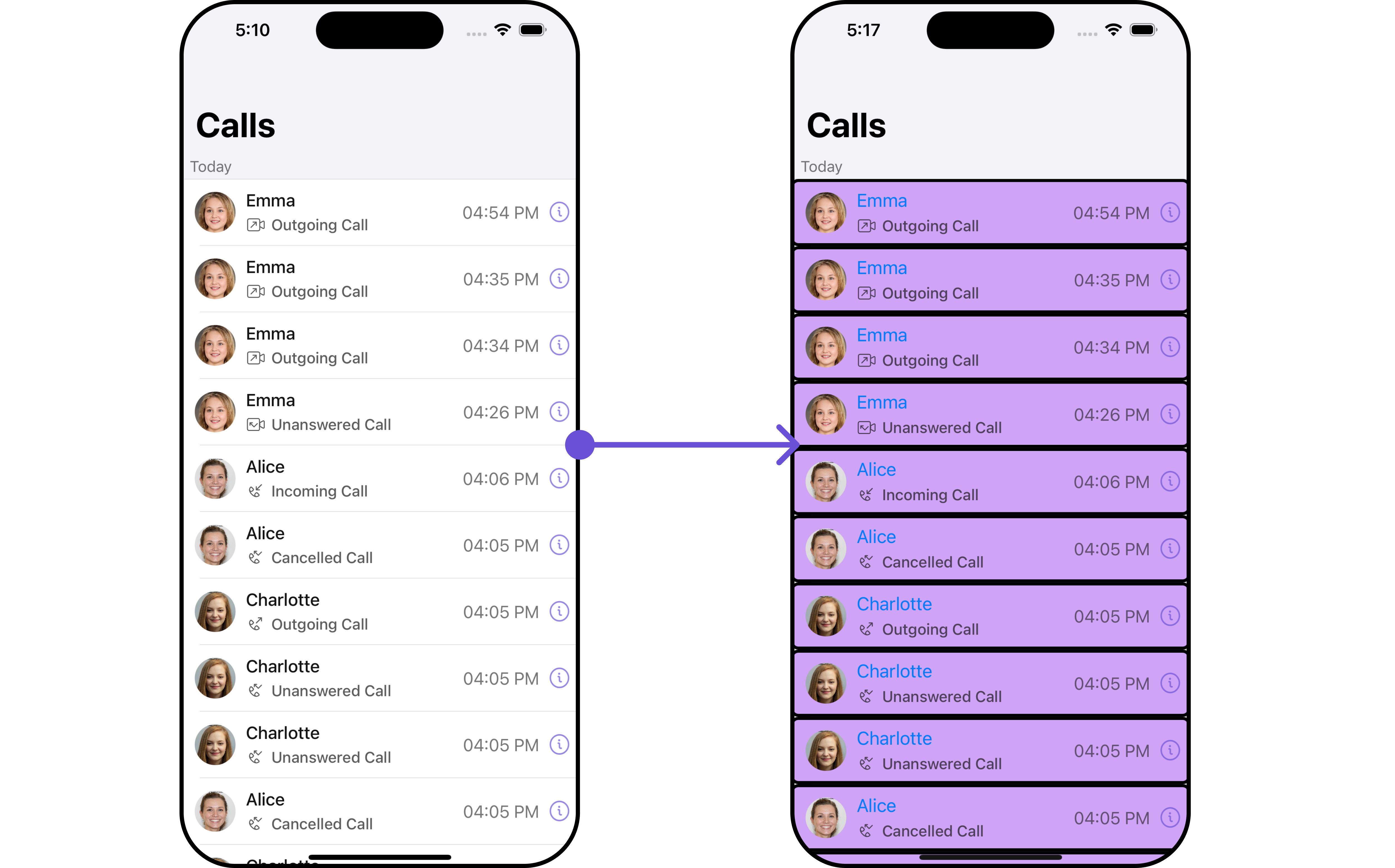

3. ListItem Styles

To apply customized styles to the ListItemStyle component in the CallLogs Component, you can use the following code snippet. For further insights on ListItemStyle Styles refer

Swift

Swift

let listItemStyle = ListItemStyle()

listItemStyle.set(background: .init(red: 0.81, green: 0.64, blue: 0.96, alpha: 1.00))
.set(titleFont: .systemFont(ofSize: 18))
.set(titleColor: .systemBlue)
.set(cornerRadius: CometChatCornerStyle(cornerRadius: 8.0))
.set(borderColor: .black)
.set(borderWidth: 3)

let callLogsConfiguration = CallLogsConfiguration()
.set(listItemStyle: listItemStyle)


// To navigate to the CometChatCallLogs
let callLogs = CometChatCallLogs()
.set(configuration: callLogsConfiguration)

Ensure to pass and present CometChatCallLogs. If a navigation controller is already in use, utilize the pushViewController function instead of directly presenting the view controller.

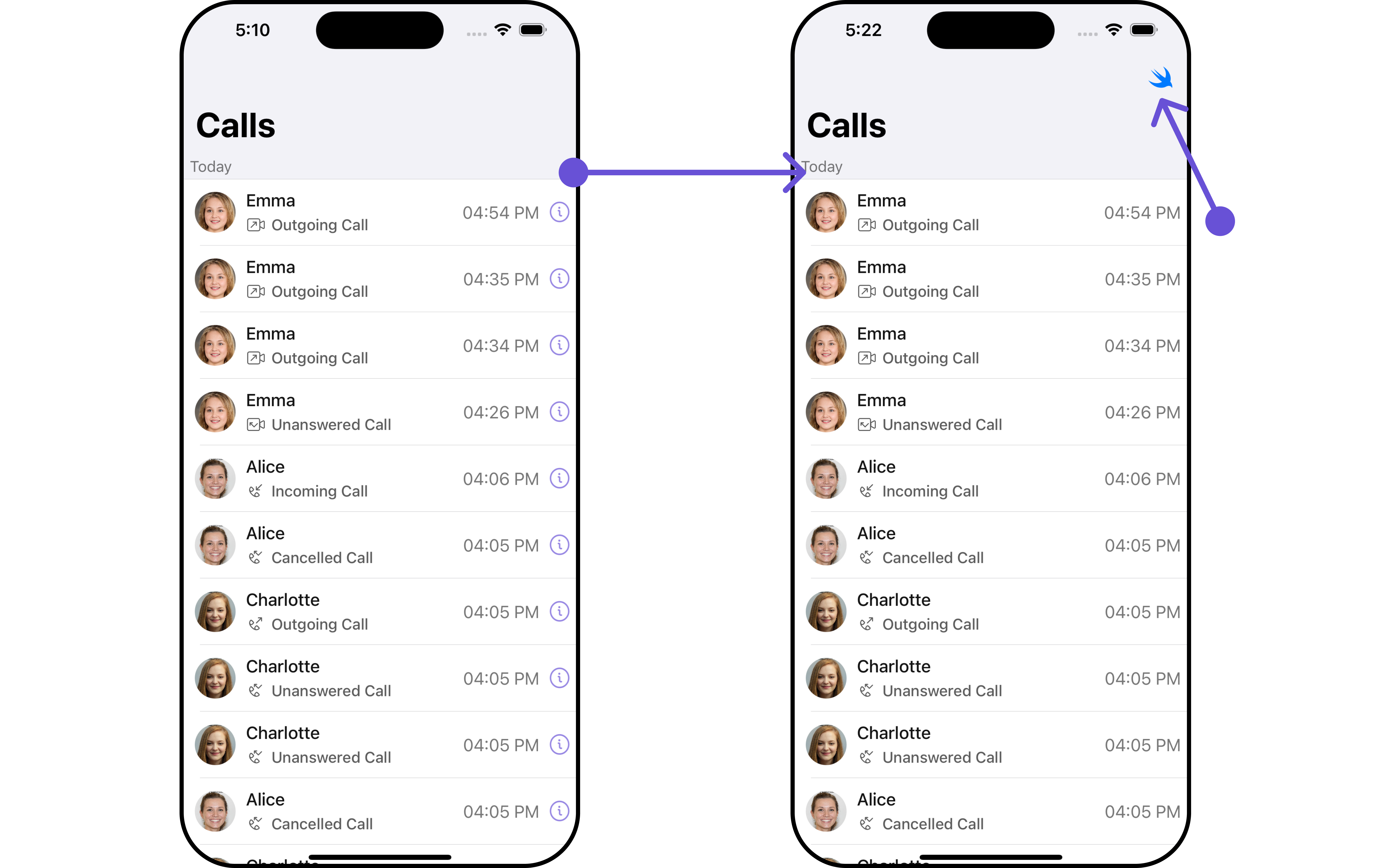

Functionality

These are a set of small functional customizations that allow you to fine-tune the overall experience of the component. With these, you can change text, set custom icons, and toggle the visibility of UI elements.

Swift

// To navigate to the CometChatCallLogs
let callLogs = CometChatCallLogs()
.hide(search: true)
.hide(separator: true)
.set(backButtonTitle: "CometChat")

self.navigationController?.pushViewController(callLogs, animated: true)

Below is a list of customizations along with corresponding code snippets

Property	Description	Code
backButtonFont	Sets the font for the back button	`.set(backButtonFont: UIFont?)`
backButtonIcon	Sets the icon for the back button	`.set(backButtonIcon: UIImage)`
backButtonTint	Sets the tint for the back button	`.set(backButtonTint: UIColor)`
backButtonTitle	Sets the title for the back button	`.set(backButtonTitle: String?)`
backButtonTitleColor	Sets the title color for the back button	`.set(backButtonTitleColor: UIColor)`
background	Sets the background	`.set(background: [CGColor]?)`
borderColor	Sets the border color	`.set(borderColor: UIColor)`
borderWidth	Sets the border width	`.set(borderWidth: CGFloat)`
corner	Sets the corner style	`.set(corner: CometChatCornerStyle)`
emptyStateText	Sets the text for empty state	`.set(emptyStateText: String)`
emptyStateTextFont	Sets the font for empty state text	`.set(emptyStateTextFont: UIFont)`
errorStateText	Sets the text for error state	`.set(errorStateText: String)`
errorStateTextColor	Sets the text color for error state	`.set(errorStateTextColor: UIColor)`
errorStateTextFont	Sets the font for error state text	`.set(errorStateTextFont: UIFont)`
largeTitleColor	Sets the color for large title	`.set(largeTitleColor: UIColor)`
largeTitleFont	Sets the font for large title	`.set(largeTitleFont: UIFont)`
searchBackground	Sets the background for the search bar	`.set(searchBackground: UIColor)`
searchBarHeight	Sets the height for the search bar	`.set(searchBarHeight: CGFloat)`
searchBorderColor	Sets the border color for the search bar	`.set(searchBorderColor: UIColor)`
searchCancelButtonFont	Sets the font for the search cancel button	`.set(searchCancelButtonFont: UIFont)`
searchCancelButtonTint	Sets the tint for the search cancel button	`.set(searchCancelButtonTint: UIColor)`
searchClearIcon	Sets the icon for the search clear button	`.set(searchClearIcon: UIImage)`
searchCornerRadius	Sets the corner radius for the search bar	`.set(searchCornerRadius: CometChatCornerStyle)`
searchIcon	Sets the icon for the search bar	`.set(searchIcon: UIImage?)`
searchPlaceholder	Sets the placeholder for the search bar	`.set(searchPlaceholder: String)`
searchTextColor	Sets the color for the search text	`.set(searchTextColor: UIColor)`
searchTextFont	Sets the font for the search text	`.set(searchTextFont: UIFont)`
title	Sets the title for the title bar	`.set(title: String, mode: UINavigationItem.LargeTitleDisplayMode)`
titleColor	Sets the color for the title	`.set(titleColor: UIColor)`
titleFont	Sets the font for the title	`.set(titleFont: UIFont)`
hide errorText	Hides the error text	`.hide(errorText: Bool)`
hide search	Hides the search bar	`.hide(search: Bool)`
hide separator	Hides the separator	`.hide(separator: Bool)`

Advanced

For advanced-level customization, you can set custom views to the component. This lets you tailor each aspect of the component to fit your exact needs and application aesthetics. You can create and define your views, layouts, and UI elements and then incorporate those into the component.

EmptyView report

You can set a custom EmptyView using .set(emptyView: UIView) to match the empty view of your app.

Swift

let callLogs = CometChatCallLogs()
    .set(emptyView: UIView)         //you can pass your own view

Example In this example, we will create a Custom_Empty_State_GroupViewa UIView file.

import UIKit

class CustomEmptyStateGroupView: UIView {
    // Initialize your subviews
    let imageView: UIImageView = {
        let imageView = UIImageView(image: UIImage(named: "noDataImage"))
        imageView.translatesAutoresizingMaskIntoConstraints = false
        return imageView
    }()

    let messageLabel: UILabel = {
        let label = UILabel()
        label.text = "No groups available"
        label.translatesAutoresizingMaskIntoConstraints = false
        label.font = UIFont.boldSystemFont(ofSize: 16)
        label.textColor = .black
        return label
    }()

    // Override the initializer
    override init(frame: CGRect) {
        super.init(frame: frame)
        // Add subviews and layout constraints
        addSubview(imageView)
        addSubview(messageLabel)
        NSLayoutConstraint.activate([
            imageView.centerXAnchor.constraint(equalTo: centerXAnchor),
            imageView.centerYAnchor.constraint(equalTo: centerYAnchor),
            imageView.heightAnchor.constraint(equalToConstant: 120),
            imageView.widthAnchor.constraint(equalToConstant: 120),

            messageLabel.topAnchor.constraint(equalTo: imageView.bottomAnchor, constant: 8),
            messageLabel.centerXAnchor.constraint(equalTo: centerXAnchor)
        ])
    }

    required init?(coder: NSCoder) {
        fatalError("init(coder:) has not been implemented")
    }
}

We will be passing a custom empty view to CometChatCallLogs, ensuring a tailored and user-friendly interface.

Swift

let customEmptyStateGroupView = CustomEmptyStateGroupView()

let callLogs = CometChatCallLogs()
.set(emptyView: customErrorStateGroupView)

self.navigationController?.pushViewController(callLogs, animated: true)

Ensure to pass and present CometChatCallLogs. If a navigation controller is already in use, utilize the pushViewController function instead of directly presenting the view controller.

ErrorView report

You can set a custom ErrorView using .set(errorView: UIView) to match the error view of your app.

Swift

let callLogs = CometChatCallLogs()
.set(errorView: UIView)     //you can pass your own view

Example In this example, we will create a UIView file Custom_ErrorState_GroupView and pass it inside the .set(errorView: UIView) method.

Custom_ErrorState_GroupView

import UIKit

let CustomErrorStateGroupView: UIView = {
        // Create main view
        let view = UIView()
        view.backgroundColor = .white

        // Create an imageView and add it to the main view
        let imageView = UIImageView(image: UIImage(systemName: "exclamationmark.triangle"))
        imageView.tintColor = .red
        imageView.translatesAutoresizingMaskIntoConstraints = false
        view.addSubview(imageView)

        // Create a label with error message and add it to the main view
        let label = UILabel()
        label.text = "An error occurred. Please try again."
        label.font = UIFont.systemFont(ofSize: 16)
        label.textColor = .darkGray
        label.numberOfLines = 0
        label.textAlignment = .center
        label.translatesAutoresizingMaskIntoConstraints = false
        view.addSubview(label)

        // Create constraints for imageView and label
        NSLayoutConstraint.activate([
            imageView.centerXAnchor.constraint(equalTo: view.centerXAnchor),
            imageView.centerYAnchor.constraint(equalTo: view.centerYAnchor, constant: -50),

            label.topAnchor.constraint(equalTo: imageView.bottomAnchor, constant: 20),
            label.leadingAnchor.constraint(equalTo: view.leadingAnchor, constant: 20),
            label.trailingAnchor.constraint(equalTo: view.trailingAnchor, constant: -20)
        ])

        return view
    }()

Swift

let customErrorStateGroupView = CustomErrorStateGroupView

// To navigate to the CometChatCallLogs
let callLogs = CometChatCallLogs()
.set(errorView: customErrorStateGroupView)

self.navigationController?.pushViewController(callLogs, animated: true)

Ensure to pass and present CometChatCallLogs. If a navigation controller is already in use, utilize the pushViewController function instead of directly presenting the view controller.

Menus

You can set the Custom Menus to add more options to the CometChatCallLogs component.

Swift

let callLogs = CometChatCallLogs()
.set(menus: [UIBarButtonItem])

You can customize the menus for CometChatCallLogs to meet your requirements

Example

In this example, we’ll craft a custom button tailored for CometChatCallLogs, enhancing its interface with a personalized menu for a more user-friendly experience.

Swift

let customMenuButton: UIBarButtonItem = {
    let button = UIButton(type: .system)
    button.setImage(UIImage(systemName: "swift"), for: .normal)
    button.setTitle("", for: .normal)
    button.addTarget(self, action: #selector(handleCustomMenu), for: .touchUpInside)
    let barButtonItem = UIBarButtonItem(customView: button)
    return barButtonItem
}()

let callLogs = CometChatCallLogs()
.set(menus: [customMenuButton])

Ensure to pass and present CometChatCallLogs. If a navigation controller is already in use, utilize the pushViewController function instead of directly presenting the view controller.

​Overview

​Usage

​Integration

​Actions

1. OnItemClick

2. OnError

​Filters

1. CallRequestBuilder

​Events

​Customization

​Style

1. CallLog Style

2. Avatar Styles

3. ListItem Styles

​Functionality

​Advanced

​EmptyView report

​ErrorView report

​Menus

Overview

Usage

Integration

Actions

Filters

Events

Customization

Style

Functionality

Advanced

EmptyView report

ErrorView report

Menus
