Overview

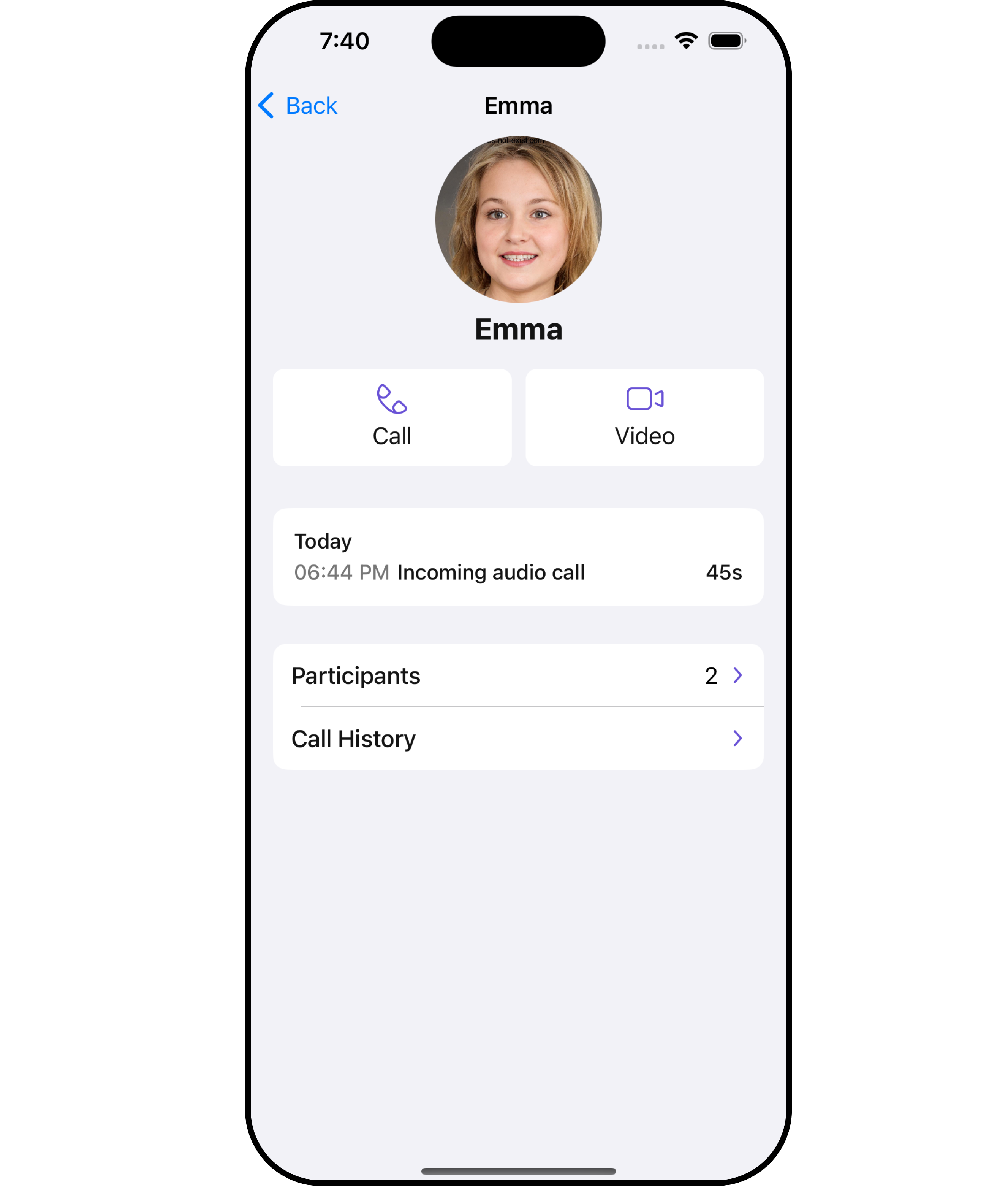

The Call Log Details is a Component that displays all the information related to a call. This component displays information like user/group information, participants of the call, recordings of the call (if available) & history of all the previous calls. Also, it has buttons to start a new call.

Usage

Integration

CometChatCallLogDetails is a ViewController, it can be seamlessly presented within your application. To display the details of a CallLog, you simply need to pass the corresponding CallLog object to the CometChatCallLogDetails instance using its setCallLog property. This enables you to efficiently showcase specific call log details within your application’s interface.

Swift

// To navigate to the CometChatCallLogs
//implementation for a callLog object
let callLogDetails = CometChatCallLogDetails()
.set(callLog: call)
self.navigationController?.pushViewController(callLogDetails, animated: true)

Actions

Actions dictate how a component functions. They are divided into two types: Predefined and User-defined. You can override either type, allowing you to tailor the behavior of the component to fit your specific needs.

1. OnCallHistoryClicked

The onCallHistoryClicked action is typically triggered when a user interacts with the call history section within the call log, executing a predefined action. However, by implementing the provided code snippet, you can effortlessly customize or override this default behavior to meet your specific requirements.

Swift

let callLogDetailsConfiguration = CallLogDetailsConfiguration()
.set (onCallHistoryClicked:{ callLog in
//Perform Your Action

})

2. OnCallRecordingsClicked

The onCallRecordingsClicked action is typically triggered when a user interacts with the recordings section within the call log, executing a predefined action. However, by implementing the provided code snippet, you can effortlessly customize or override this default behavior to meet your specific requirements.

Swift

let callLogDetailsConfiguration = CallLogDetailsConfiguration()
.set (onCallRecordingsClicked:{ callLog in
//Perform Your Action

})

3. OnCallParticipantsClicked

The onCallParticipantsClicked action is typically triggered when a user interacts with the participants section within the call log, executing a predefined action. However, by implementing the provided code snippet, you can effortlessly customize or override this default behavior to meet your specific requirements.

Swift

let callLogDetailsConfiguration = CallLogDetailsConfiguration()
.set (onCallParticipantsClicked:{ callLog in
//Perform Your Action

})

Filters

Filters allow you to customize the data displayed in a list within a Component. You can filter the list based on your specific criteria, allowing for a more customized. Filters can be applied using RequestBuilders of Chat SDK. The Call Log Details component does not have any exposed filters.

Events

Events are emitted by a Component. By using event you can extend existing functionality. Being global events, they can be applied in Multiple Locations and are capable of being Added or Removed. The Call Log Details component does not have any exposed events.

Customization

To fit your app’s design requirements, you can customize the appearance of the conversation component. We provide exposed methods that allow you to modify the experience and behavior according to your specific needs.

Style

Using Style you can customize the look and feel of the component in your app, These parameters typically control elements such as the color, size, shape, and fonts used within the component.

1. CallLogDetails Style

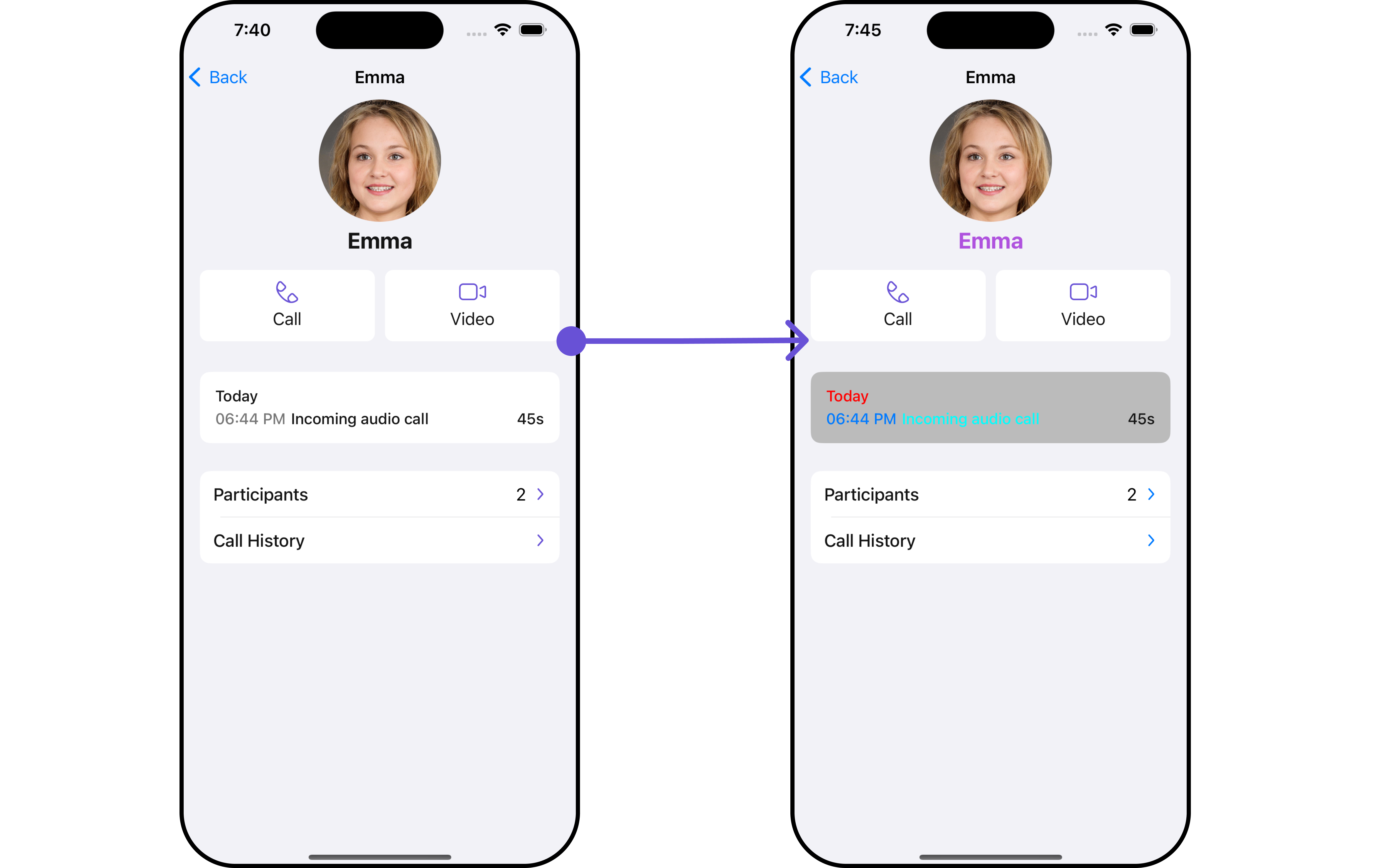

You can customize the appearance of the callLogDetails Component by applying the callLogDetailsStyle to it using the following code snippet.

Swift

let callLogDetailsStyle = CallLogDetailsStyle()
.set(callStatusTextColor: .cyan)
.set(dateTextColor: .red)
.set(nameTextColor: .systemPurple)
.set(background: .magenta)
.set(arrowIconTint: .systemBlue)
.set(detailsSectionBackgroundColor: .lightGray.withAlphaComponent(0.8))
.set(timeTextColor: .systemBlue)
.set(borderColor: .green)
.set(borderWidth: 3)

let CallLogDetailsConfiguration = CallLogDetailsConfiguration()
.set(style: callLogDetailsStyle)

let callLogDetails = CometChatCallLogDetails()
.set(configuration: CallLogDetailsConfiguration)

Property	Description	Code
background	Sets the background color	`.set(background: UIColor)`
borderWidth	Sets the border width	`.set(borderWidth: CGFloat)`
borderColor	Sets the border color	`.set(borderColor: UIColor)`
nameTextFont	Sets the name text font	`.set(nameTextFont: UIFont)`
nameTextColor	Sets the name text color	`.set(nameTextColor: UIColor)`
detailsSectionBackgroundColor	Sets the details section background color	`.set(detailsSectionBackgroundColor: UIColor)`
dateTextFont	Sets the font for date text	`.set(dateTextFont: UIFont)`
dateTextColor	Sets the text color for date	`.set(dateTextColor: UIColor)`
timeTextColor	Sets the color for the time text	`.set(timeTextColor: UIColor)`
timeTextFont	Sets the font for the time text	`.set(timeTextFont: UIFont)`
durationTextFont	Sets the font for the duration text	`.set(durationTextFont: UIFont)`
durationTextColor	Sets the color for the duration text	`.set(durationTextColor: UIColor)`
callStatusTextFont	Sets the font for the call status text	`.set(callStatusTextFont: UIFont)`
callStatusTextColor	Sets the color for the call status text	`.set(callStatusTextColor: UIColor)`
arrowIconTint	Sets the tint color for the arrow icon	`.set(arrowIconTint: UIColor)`
corner radius	Sets the corner radius	`.set(cornerRadius: CometChatCornerStyle)`

2. Avatar Styles

To apply customized styles to the Avatar component in the callLogDetails Component, you can use the following code snippet. For further insights on Avatar Styles refer

Swift

Swift

let avatarStyle = AvatarStyle()
.set(background: .red)
.set(textFont: .systemFont(ofSize: 18))
.set(textColor: .systemTeal)
.set(cornerRadius: CometChatCornerStyle(cornerRadius: 8.0))
.set(borderColor: .systemBlue)
.set(borderWidth: 5)
.set(outerViewWidth: 3)
.set(outerViewSpacing: 3)

let CallLogDetailsConfiguration = CallLogDetailsConfiguration()
.set(avatarStyle: avatarStyle)

let callLogDetails = CometChatCallLogDetails()
.set(configuration: CallLogDetailsConfiguration)

3. Button Styles

You can customize the appearance of the CallLogDetails Component by applying the ButtonStyle to it using the following code snippet.

Swift

Swift

let buttonStyle = ButtonStyle()
.set(background: .red)
.set(textFont: .systemFont(ofSize: 18))
.set(textColor: .systemTeal)
.set(cornerRadius: CometChatCornerStyle(cornerRadius: 8.0))
.set(borderColor: .systemBlue)
.set(borderWidth: 5)
.set(iconBackground: .systemTeal)
.set(iconBorder: 6)
.set(iconCornerRadius: 10)
.set(iconTint: .blue)

let CallLogDetailsConfiguration = CallLogDetailsConfiguration()
.set(callButtonStyle: buttonStyle)

let callLogDetails = CometChatCallLogDetails()
.set(configuration: CallLogDetailsConfiguration)

Ensure to pass and present CometChatCallLogDetails. If a navigation controller is already in use, utilize the pushViewController function instead of directly presenting the view controller.

Functionality

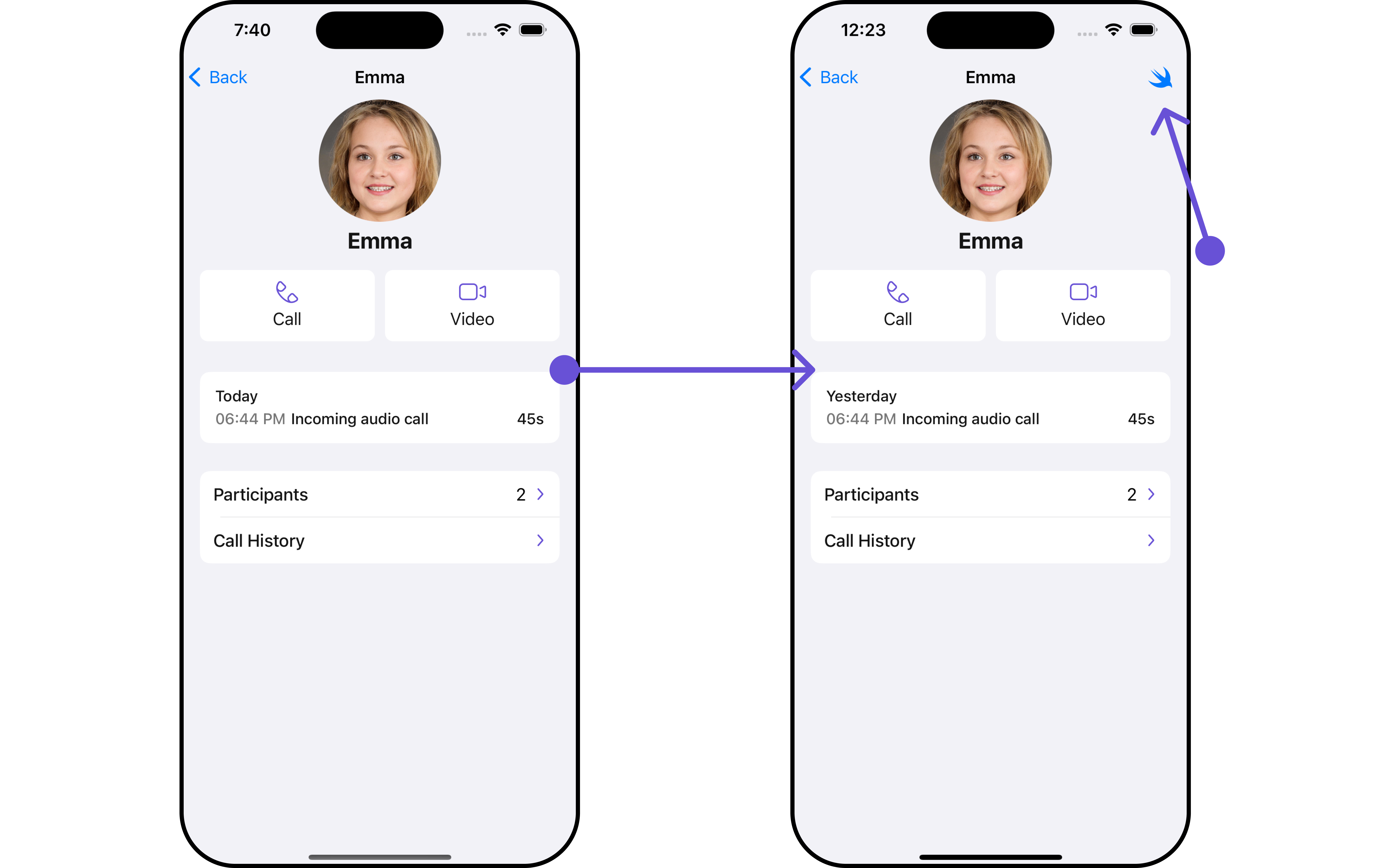

These are a set of small functional customizations that allow you to fine-tune the overall experience of the component. With these, you can change text, set custom icons, and toggle the visibility of UI elements.

Swift

let callLogDetails = CometChatCallLogDetails()
.set(title: "Cc", mode: .automatic)
.hide(separator: true)
.set(backButtonIcon: UIImage(systemName: "cricket.ball.fill")!)

self.navigationController?.pushViewController(callLogDetails, animated: true)

Below is a list of customizations along with corresponding code snippets

Property	Description	Code
titleFont	Sets the font for the title	`.set(titleFont: UIFont)`
titleColor	Sets the color for the title	`.set(titleColor: UIColor)`
title	Sets the title for the title bar	`.set(title: String, mode: UINavigationItem.LargeTitleDisplayMode)`
largeTitleFont	Sets the large title font	`.set(largeTitleFont: UIFont)`
backButtonTitle	Sets the back button title	`.set(backButtonTitle: String?)`
largeTitleColor	Sets the large title color	`.set(largeTitleColor: UIColor)`
backButtonTitleColor	Sets the back button title color	`.set(backButtonTitleColor: UIColor)`
hide(search)	Hides the search bar	`.hide(search: Bool)`
hide(separator)	Hides the separator	`.hide(separator: Bool)`
hide(errorText)	Hides the error text	`.hide(errorText: Bool)`
callLog	Sets the call log	`.set(callLog: Any?)`
backButtonFont	Sets the back button font	`.set(backButtonFont: UIFont?)`
backButtonIcon	Sets the back button icon	`.set(backButtonIcon: UIImage)`
backButtonTint	Sets the back button tint	`.set(backButtonTint: UIColor)`
background	Sets the background	`.set(background: [CGColor]?)`
borderColor	Sets the border color	`.set(borderColor: UIColor)`
borderWidth	Sets the border width	`.set(borderWidth: CGFloat)`
corner	Sets the corner style	`.set(corner: CometChatCornerStyle)`
emptyStateText	Sets the empty state text	`.set(emptyStateText: String)`
emptyStateTextColor	Sets the empty state text color	`.set(emptyStateTextColor: UIColor)`
emptyStateTextFont	Sets the empty state text font	`.set(emptyStateTextFont: UIFont)`
errorStateText	Sets the error state text	`.set(errorStateText: String)`
errorStateTextColor	Sets the error state text color	`.set(errorStateTextColor: UIColor)`
errorStateTextFont	Sets the error state text font	`.set(errorStateTextFont: UIFont)`
searchBackground	Sets the search background	`.set(searchBackground: UIColor)`
searchIcon	Sets the search icon	`.set(searchIcon: UIImage?)`
searchPlaceholder	Sets the search placeholder	`.set(searchPlaceholder: String)`
searchIconTint	Sets the search icon tint	`.set(searchIconTint: UIColor)`
searchTextFont	Sets the search text font	`.set(searchTextFont: UIFont)`
searchBarHeight	Sets the search bar height	`.set(searchBarHeight: CGFloat)`
searchClearIcon	Sets the search clear icon	`.set(searchClearIcon: UIImage)`
searchTextColor	Sets the search text color	`.set(searchTextColor: UIColor)`
searchBorderColor	Sets the search border color	`.set(searchBorderColor: UIColor)`
searchBorderWidth	Sets the search border width	`.set(searchBorderWidth: CGFloat)`
searchCornerRadius	Sets the search corner radius	`.set(searchCornerRadius: CometChatCornerStyle)`
searchClearIconTint	Sets the search clear icon tint	`.set(searchClearIconTint: UIColor)`
searchPlaceholderColor	Sets the search placeholder color	`.set(searchPlaceholderColor: UIColor)`
searchCancelButtonFont	Sets the search cancel button font	`.set(searchCancelButtonFont: UIFont)`
searchCancelButtonTint	Sets the search cancel button tint	`.set(searchCancelButtonTint: UIColor)`

Advanced

For advanced-level customization, you can set custom views to the component. This lets you tailor each aspect of the component to fit your exact needs and application aesthetics. You can create and define your views, layouts, and UI elements and then incorporate those into the component.

EmptyView report

You can set a custom EmptyView using .set(emptyView: UIView) to match the empty view of your app.

Swift

let callLogDetails = CometChatCallLogDetails()
.set(emptyView: UIView)       //you can pass your own view

Example In this example, we will create a Custom_Empty_State_GroupViewa UIView file.

import UIKit

class CustomEmptyStateGroupView: UIView {
    // Initialize your subviews
    let imageView: UIImageView = {
        let imageView = UIImageView(image: UIImage(named: "noDataImage"))
        imageView.translatesAutoresizingMaskIntoConstraints = false
        return imageView
    }()

    let messageLabel: UILabel = {
        let label = UILabel()
        label.text = "No groups available"
        label.translatesAutoresizingMaskIntoConstraints = false
        label.font = UIFont.boldSystemFont(ofSize: 16)
        label.textColor = .black
        return label
    }()

    // Override the initializer
    override init(frame: CGRect) {
        super.init(frame: frame)
        // Add subviews and layout constraints
        addSubview(imageView)
        addSubview(messageLabel)
        NSLayoutConstraint.activate([
            imageView.centerXAnchor.constraint(equalTo: centerXAnchor),
            imageView.centerYAnchor.constraint(equalTo: centerYAnchor),
            imageView.heightAnchor.constraint(equalToConstant: 120),
            imageView.widthAnchor.constraint(equalToConstant: 120),

            messageLabel.topAnchor.constraint(equalTo: imageView.bottomAnchor, constant: 8),
            messageLabel.centerXAnchor.constraint(equalTo: centerXAnchor)
        ])
    }

    required init?(coder: NSCoder) {
        fatalError("init(coder:) has not been implemented")
    }
}

We will be passing a custom empty view to CometChatCallLogDetails, ensuring a tailored and user-friendly interface.

Swift

let customEmptyStateGroupView = CustomEmptyStateGroupView()

let callLogDetails = CometChatCallLogDetails()
.set(emptyView: customEmptyStateGroupView)

self.navigationController?.pushViewController(callLogDetails, animated: true)

Ensure to pass and present CometChatCallLogDetails. If a navigation controller is already in use, utilize the pushViewController function instead of directly presenting the view controller.

ErrorView report

You can set a custom ErrorView using .set(errorView: UIView) to match the error view of your app.

Swift

let callLogDetails = CometChatCallLogDetails()
.set(errorView: UIView)    //you can pass your own view

Example In this example, we will create a UIView file Custom_ErrorState_GroupView and pass it inside the .set(errorView: UIView) method.

Custom_ErrorState_GroupView

import UIKit

let CustomErrorStateGroupView: UIView = {
        // Create main view
        let view = UIView()
        view.backgroundColor = .white

        // Create an imageView and add it to the main view
        let imageView = UIImageView(image: UIImage(systemName: "exclamationmark.triangle"))
        imageView.tintColor = .red
        imageView.translatesAutoresizingMaskIntoConstraints = false
        view.addSubview(imageView)

        // Create a label with error message and add it to the main view
        let label = UILabel()
        label.text = "An error occurred. Please try again."
        label.font = UIFont.systemFont(ofSize: 16)
        label.textColor = .darkGray
        label.numberOfLines = 0
        label.textAlignment = .center
        label.translatesAutoresizingMaskIntoConstraints = false
        view.addSubview(label)

        // Create constraints for imageView and label
        NSLayoutConstraint.activate([
            imageView.centerXAnchor.constraint(equalTo: view.centerXAnchor),
            imageView.centerYAnchor.constraint(equalTo: view.centerYAnchor, constant: -50),

            label.topAnchor.constraint(equalTo: imageView.bottomAnchor, constant: 20),
            label.leadingAnchor.constraint(equalTo: view.leadingAnchor, constant: 20),
            label.trailingAnchor.constraint(equalTo: view.trailingAnchor, constant: -20)
        ])

        return view
    }()

Swift

let customErrorStateGroupView = CustomErrorStateGroupView

let callLogDetails = CometChatCallLogDetails()
.set(errorView: customErrorStateGroupView)

self.navigationController?.pushViewController(callLogDetails, animated: true)

Ensure to pass and present CometChatCallLogDetails. If a navigation controller is already in use, utilize the pushViewController function instead of directly presenting the view controller.

Menus

You can set the Custom Menus to add more options to the CometChatCallLogDetails component.

Swift

let callLogDetails = CometChatCallLogDetails()
.set(menus: [UIBarButtonItem])

You can customize the menus for CometChatCallLogDetails to meet your requirements

Example

In this example, we’ll craft a custom button tailored for callLogDetails, enhancing its interface with a personalized menu for a more user-friendly experience.

Swift

let customMenuButton: UIBarButtonItem = {
    let button = UIButton(type: .system)
    button.setImage(UIImage(systemName: "swift"), for: .normal)
    button.setTitle("", for: .normal)
    button.addTarget(self, action: #selector(handleCustomMenu), for: .touchUpInside)
    let barButtonItem = UIBarButtonItem(customView: button)
    return barButtonItem
}()

let callLogDetails = CometChatCallLogDetails()
.set(menus: [customMenuButton])

Ensure to pass and present CometChatCallLogDetails. If a navigation controller is already in use, utilize the pushViewController function instead of directly presenting the view controller.

Options

Enhance your CallLogDetails component by setting Custom Options to incorporate additional functionalities when swiping

Swift

let group = Group(guid: "your-uid", name: "", groupType: .public, password: .none)

let cometChatTransferOwnership = CometChatTransferOwnership(group: group)
    .setOptions { group, groupMember in
    //Perform Your Action

}

You can customize the options for CallLogDetails to meet your requirements

Example In this example, we’ve customized the interface of CometChatCallLogDetails by incorporating a unique feature. By implementing a custom option, labeled “Custom Option,” users can access additional functionalities tailored to their needs. Additionally, a custom template, named “Custom Template,” enhances the visual presentation of call log details. This customization allows for a more engaging and user-friendly experience within the application.

Swift

// Define custom option
let customOption = CometChatCallDetailsOption(
    id: "CustomOption",
    title: "Custom Option",
    customView: nil,
    titleColor: .blue,
    titleFont: .systemFont(ofSize: 14),
    height: 50,
    tailView: nil
) { callLog, index, option, controller in
   print("Custom option tapped")
  }

// Define custom template
let customTemplate = CometChatCallDetailsTemplate(
    id: "CustomTemplate",
    title: "Custom Template",
    height: 20,
    titleFont: .boldSystemFont(ofSize: 16),
    titleColor: .black,
    itemSeparatorColor: .lightGray
) { callLog, controller in
   let customTemplateView = UIView()
   customTemplateView.backgroundColor = .yellow
   return customTemplateView
  } options: { callLog in
              return [customOption]
             }

// Integrate custom option and template into the call log details
let callLogDetails = CometChatCallLogDetails()
callLogDetails.add(option: customOption, templateID: "CustomTemplate")

Ensure to pass and present CometChatCallLogDetails. If a navigation controller is already in use, utilize the pushViewController function instead of directly presenting the view controller.

​Overview

​Usage

​Integration

​Actions

1. OnCallHistoryClicked

2. OnCallRecordingsClicked

3. OnCallParticipantsClicked

​Filters

​Events

​Customization

​Style

1. CallLogDetails Style

2. Avatar Styles

3. Button Styles

​Functionality

​Advanced

​EmptyView report

​ErrorView report

​Menus

​Options

Overview

Usage

Integration

Actions

Filters

Events

Customization

Style

Functionality

Advanced

EmptyView report

ErrorView report

Menus

Options
