Message Composer

Overview

CometChatMessageComposer is a Widget that enables users to write and send a variety of messages, including text, image, video, and custom messages. Features such as Live Reaction, Attachments, and Message Editing are also supported by it.

CometChatMessageComposer is comprised of the following Base Widgets:

Base Widgets	Description
MessageInput	This provides a basic layout for the contents of this component, such as the TextField and buttons
ActionSheet	The ActionSheet widget presents a list of options in either a list or grid mode, depending on the user’s preference

Usage

Integration

You can launch CometChatMessageComposer directly using Navigator.push, or you can define it as a widget within the build method of your State class.

1. Using Navigator to Launch `CometChatMessageComposer`

Dart

Navigator.push(context, MaterialPageRoute(builder: (context) => CometChatMessageComposer())); // A user or group object is required to launch this widget.

2. Embedding `CometChatMessageComposer` as a Widget in the build Method

Dart

import 'package:cometchat_chat_uikit/cometchat_chat_uikit.dart';
import 'package:flutter/material.dart';

class MessageComposer extends StatefulWidget {
  const MessageComposer({super.key});

  @override
  State<MessageComposer> createState() => _MessageComposerState();
}

class _MessageComposerState extends State<MessageComposer> {

  @override
  Widget build(BuildContext context) {
    return Scaffold(
        body: SafeArea(
            child: Column(
              children: [
                const Spacer(),
                CometChatMessageComposer()
              ],
            ) // A user or group object is required to launch this widget.
        )
    );
  }
}

Actions

Actions dictate how a widget functions. They are divided into two types: Predefined and User-defined. You can override either type, allowing you to tailor the behavior of the widget to fit your specific needs.

1. OnSendButtonClick

The OnSendButtonClick event gets activated when the send message button is clicked. It has a predefined function of sending messages entered in the composer EditText. However, you can overide this action with the following code snippet.

Dart

CometChatMessageComposer(
  user: user,
  onSendButtonTap: (BuildContext context, BaseMessage baseMessage, PreviewMessageMode? previewMessageMode) {
    // TODO("Not yet implemented")
  },
)

2. onChange

This action handles changes in the value of text in the input field of the CometChatMessageComposer widget.

Dart

CometChatMessageComposer(
  user: user,
  onChange: (String? text) {
    // TODO("Not yet implemented")
  },
)

3. onError

This action doesn’t change the behavior of the widget but rather listens for any errors that occur in the MessageList widget.

Dart

CometChatMessageComposer(
  user: user,
  onError: (e) {
    // TODO("Not yet implemented")
  },
)

Filters

CometChatMessageComposer widget does not have any available filters.

Events

Events are emitted by a Widget. By using event you can extend existing functionality. Being global events, they can be applied in Multiple Locations and are capable of being Added or Removed. The CometChatMessageComposer Widget does not emit any events of its own.

Customization

To fit your app’s design requirements, you can customize the appearance of the CometChatMessageComposer widget. We provide exposed methods that allow you to modify the experience and behavior according to your specific needs.

Style

Using Style you can customize the look and feel of the widget in your app, These parameters typically control elements such as the color, size, shape, and fonts used within the widget.

1. CometChatMessageComposerStyle

To modify the styling, you can apply the CometChatMessageComposerStyle to the CometChatMessageComposer Widget using the messageComposerStyle property.

Dart

CometChatMessageComposer(
  user: user,
  messageComposerStyle: CometChatMessageComposerStyle(
      sendButtonIconBackgroundColor: Color(0xFFF76808),
      secondaryButtonIconColor: Color(0xFFF76808),
      auxiliaryButtonIconColor: Color(0xFFF76808)
    )
)

2. MediaRecorder Style

To customize the styles of the MediaRecorder widget within the CometChatMessageComposer Widget, use the mediaRecorderStyle property. For more details, please refer to MediaRecorder styles.

Dart

CometChatMessageComposer(
  user: user,
  messageComposerStyle: CometChatMessageComposerStyle(
  mediaRecorderStyle: CometChatMediaRecorderStyle(
            recordIndicatorBackgroundColor: Color(0xFFF44649),
            recordIndicatorBorderRadius: BorderRadius.circular(20),
            pauseButtonBorderRadius: BorderRadius.circular(8),
            deleteButtonBorderRadius: BorderRadius.circular(8),
            stopButtonBorderRadius: BorderRadius.circular(8),
          ),
  ),
)

3. AI Options Style

To customize the styles of the AI Options widget within the CometChatMessageComposer Widget, use the aiOptionStyle.

Dart

CometChatMessageComposer(
  user: user,
messageComposerStyle: CometChatMessageComposerStyle(
                      aiOptionStyle: AIOptionsStyle(
                        backgroundColor: Color(0xFFE4EBF5),
                        border: Border.all(width: 3, color: Colors.red),
                      )
                  ),
)

Functionality

These are a set of small functional customizations that allow you to fine-tune the overall experience of the widget. With these, you can change text, set custom icons, and toggle the visibility of UI elements.

Dart

CometChatMessageComposer(
  user: user,
  placeholderText: "Type a message...",
  disableMentions: true,
)

Below is a list of customizations along with corresponding code snippets

Message Composer Properties

Property	Data Type	Description
`user`	`User?`	Sets user for the message composer.
`group`	`Group?`	Sets group for the message composer.
`messageComposerStyle`	`CometChatMessageComposerStyle?`	Sets style for the message composer.
`placeholderText`	`String?`	Hint text for the input field.
`text`	`String?`	Initial text for the input field.
`onChange`	`Function(String text)?`	Callback triggered when text changes.
`textEditingController`	`TextEditingController?`	Controls the state of the text field.
`maxLine`	`int?`	Maximum number of lines allowed in the input field.
`disableMentions`	`bool?`	Disables mentions in the composer.
`disableTypingEvents`	`bool`	Disables typing events.
`disableSoundForMessages`	`bool`	Disables sound for sent messages.
`customSoundForMessage`	`String?`	URL for custom sound when a message is sent.
`customSoundForMessagePackage`	`String?`	Package name for the custom sound.
`parentMessageId`	`int`	ID of the parent message (default is 0).
`padding`	`EdgeInsetsGeometry?`	Sets padding for the message composer.
`messageInputPadding`	`EdgeInsetsGeometry?`	Sets padding for the message input field.
`sendButtonView`	`Widget?`	Custom send button widget.
`attachmentIcon`	`Widget?`	Custom attachment icon.
`attachmentIconURL`	`String?`	URL of the attachment icon.
`voiceRecordingIcon`	`Widget?`	Custom voice recording icon.
`aiIcon`	`Widget?`	Custom AI button icon.
`aiIconURL`	`String?`	URL for the AI button icon.
`aiIconPackageName`	`String?`	Package name for the AI icon.
`auxiliaryButtonView`	`ComposerWidgetBuilder?`	UI component forwarded to message input as auxiliary button.
`secondaryButtonView`	`ComposerWidgetBuilder?`	UI component forwarded to message input as secondary button.
`auxiliaryButtonsAlignment`	`AuxiliaryButtonsAlignment?`	Controls position of auxiliary button view.
`hideVoiceRecordingButton`	`bool?`	Option to hide the voice recording button.
`recorderStartButtonIcon`	`Widget?`	Custom start button icon for the recorder.
`recorderPauseButtonIcon`	`Widget?`	Custom pause button icon for the recorder.
`recorderDeleteButtonIcon`	`Widget?`	Custom delete button icon for the recorder.
`recorderStopButtonIcon`	`Widget?`	Custom stop button icon for the recorder.
`recorderSendButtonIcon`	`Widget?`	Custom send button icon for the recorder.
`attachmentOptions`	`ComposerActionsBuilder?`	Provides options for file attachments.
`hideAttachmentButton`	`bool?`	Hide/display attachment button.
`hideImageAttachmentOption`	`bool?`	Hide/display image attachment option.
`hideVideoAttachmentOption`	`bool?`	Hide/display video attachment option.
`hideAudioAttachmentOption`	`bool?`	Hide/display audio attachment option.
`hideFileAttachmentOption`	`bool?`	Hide/display file attachment option.
`hidePollsOption`	`bool?`	Hide/display polls option.
`hideCollaborativeDocumentOption`	`bool?`	Hide/display collaborative document option.
`hideCollaborativeWhiteboardOption`	`bool?`	Hide/display collaborative whiteboard option.
`hideTakePhotoOption`	`bool?`	Hide/display take photo option.
`onSendButtonTap`	`Function(BuildContext, BaseMessage, PreviewMessageMode?)?`	Callback triggered when the send button is tapped.
`onError`	`OnError?`	Callback to handle errors.
`stateCallBack`	`Function(CometChatMessageComposerController controller)?`	Callback to manage state of the message composer.
`hideSendButton`	`bool?`	Hide/display the send button.
`hideStickersButton`	`bool?`	Hide/display the sticker button.
`sendButtonIcon`	`Widget?`	Custom send button icon.

Advanced

For advanced-level customization, you can set custom widgets to the widget. This lets you tailor each aspect of the widget to fit your exact needs and application aesthetics. You can create and define your widgets and then incorporate those into the widget.

TextFormatters

Assigns the list of text formatters. If the provided list is not null, it sets the list. Otherwise, it assigns the default text formatters retrieved from the data source. To configure the existing Mentions look and feel check out CometChatMentionsFormatter Example Here is the complete example for reference:

Dart

CometChatMessageComposer(
  user: user,
  textFormatters: [
       CometChatMentionsFormatter(
              style: CometChatMentionsStyle(
                     mentionSelfTextBackgroundColor: Color(0xFFF76808),
                     mentionTextBackgroundColor: Colors.white,
                     mentionTextColor: Colors.black,
                     mentionSelfTextColor: Colors.white,
                    )
          )
    ],
)

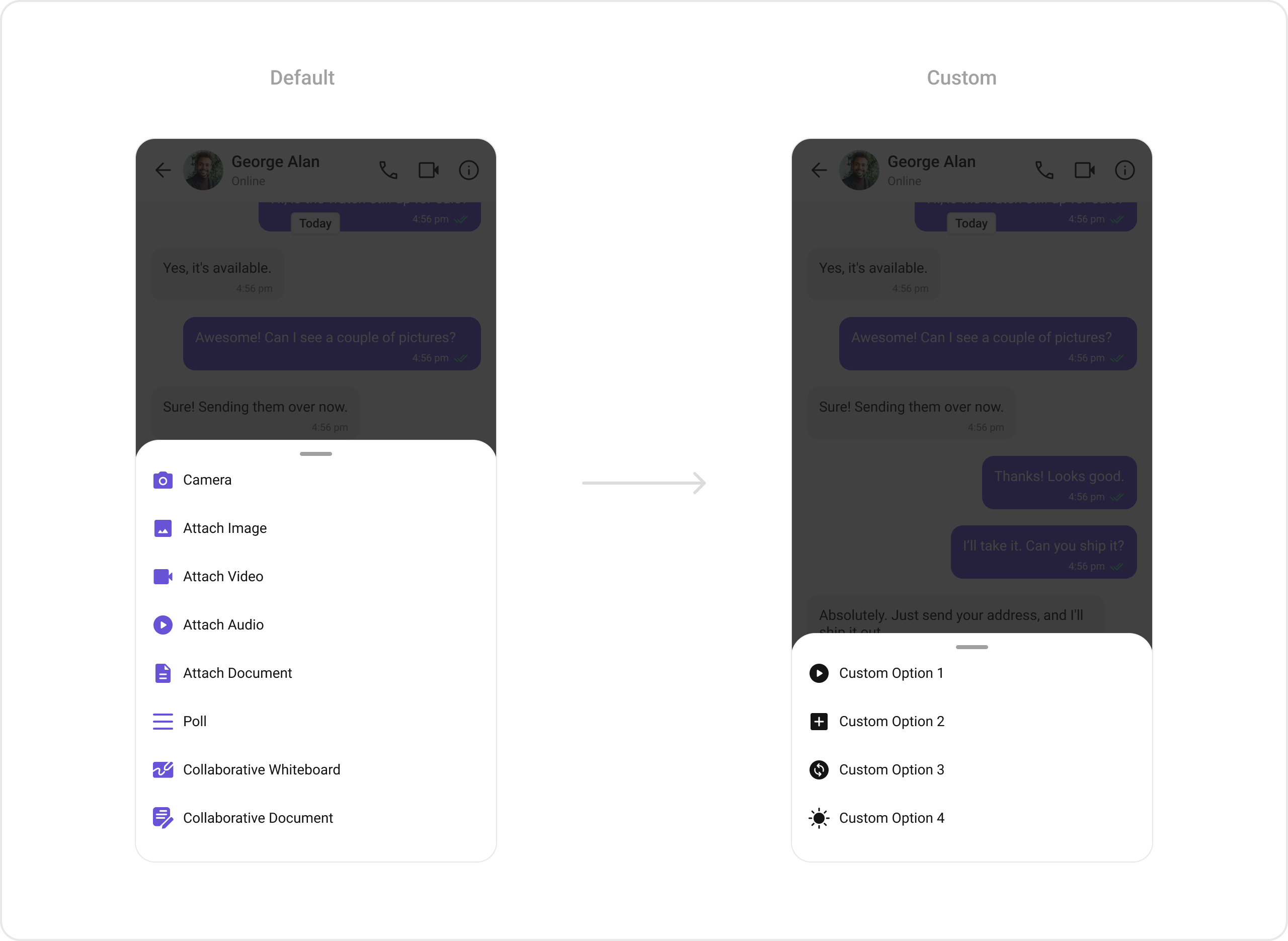

AttachmentOptions

By using attachmentOptions, you can set a list of custom MessageComposerActions for the CometChatMessageComposer Widget. This will override the existing list of MessageComposerActions. Example Here is the complete example for reference:

Dart

CometChatMessageComposer(
  user: user,
  attachmentOptions: (context, user, group, id) {
      return <CometChatMessageComposerAction>[
            CometChatMessageComposerAction(
                  id: "Custom Option 1",
                  title: "Custom Option 1",
                  icon: Icon(
                    Icons.play_circle,
                    color: Colors.black,
                  ),
              ),
            CometChatMessageComposerAction(
                  id: "Custom Option 2",
                  title: "Custom Option 2",
                  icon: Icon(
                    Icons.add_box,
                    color: Colors.black,
                  ),
              ),
            CometChatMessageComposerAction(
                  id: "Custom Option 3",
                  title: "Custom Option 3",
                  icon: Icon(
                    Icons.change_circle,
                    color: Colors.black,
                  ),
              ),
            CometChatMessageComposerAction(
                  id: "Custom Option 4",
                  title: "Custom Option 4",
                  icon: Icon(
                    Icons.sunny,
                    color: Colors.black,
                  ),
             )
          ];
      },
)

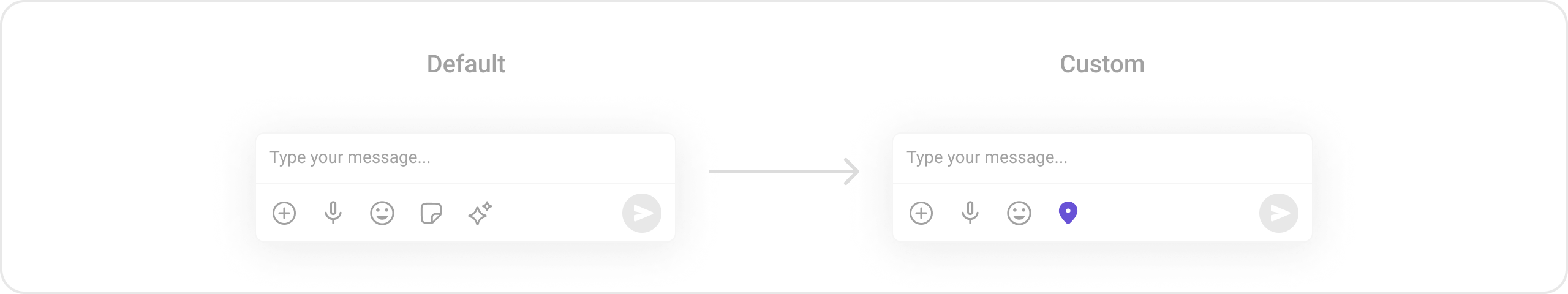

You can insert a custom widget into the CometChatMessageComposer widget to add additional functionality using the auxiliaryButtonView property. Example Here is the complete example for reference:

Dart

CometChatMessageComposer(
    user: user,
    auxiliaryButtonView: (context, user, group, id) {
              final existingAuxiliaryOptions = CometChatUIKit.getDataSource()
                  .getAuxiliaryOptions(user, group, context, id, Color(0xFFA1A1A1));
              return Row(
                children: [
                  existingAuxiliaryOptions,
                  Icon(
                    Icons.location_pin,
                    color: Color(0xFF6852D6),
                  ),
                ],
        );
    },
)

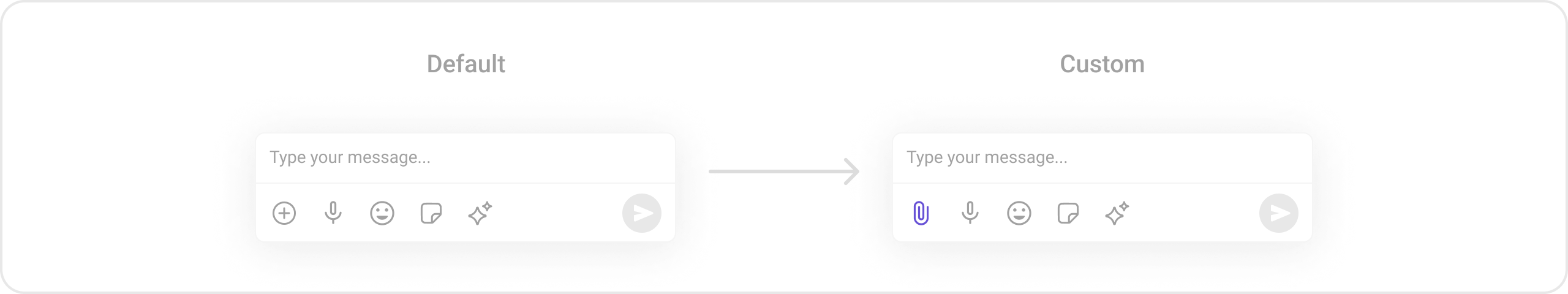

You can add a custom widget into the SecondaryButton widget for additional functionality using the secondaryButtonView property. Example Here is the complete example for reference:

Dart

CometChatMessageComposer(
    user: user,
    secondaryButtonView: (context, user, group, id) {
        return Icon(
            Icons.attach_file,
            color: Color(0xFF6852D6),
          );
    }
)

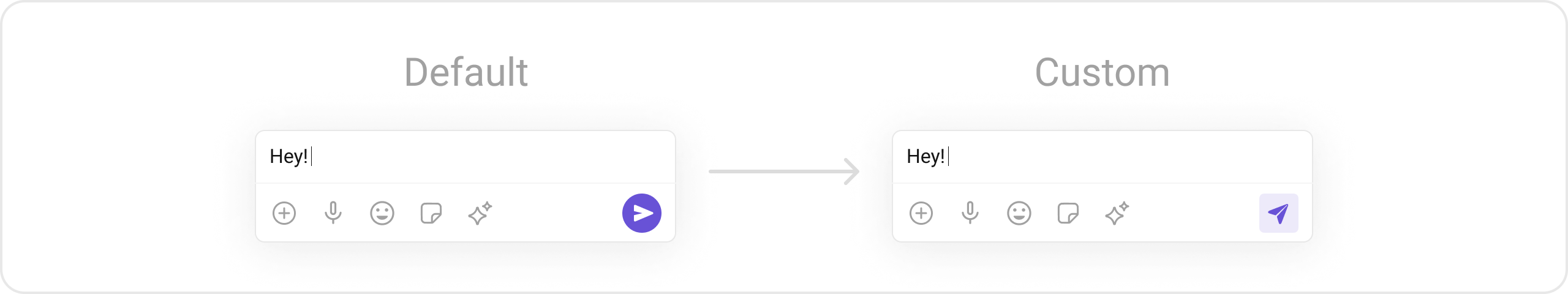

You can set a custom widget in place of the already existing send button widget. Using the sendButtonView property. Example Here is the complete example for reference:

Dart

 CometChatMessageComposer(
      user: user,
      sendButtonView: IconButton(
          onPressed: () {},
          padding: EdgeInsets.all(4),
          style: IconButton.styleFrom(
              alignment: Alignment.center,
              backgroundColor: Color(0xFFEDEAFA),
              shape: RoundedRectangleBorder(
                borderRadius: BorderRadius.circular(4),
              )),
          icon: Transform.rotate(
                    angle: 150,
                    child: Icon(
                         Icons.send,
                         size: 20,
                         color: Color(0xFF6852D6),
                      ),
                )
      ),
    )

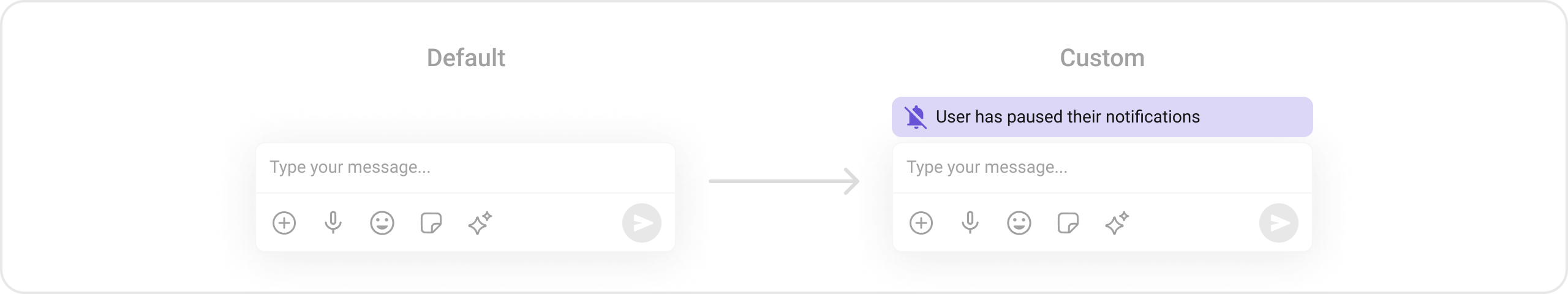

Header Widget

You can set custom headerView to the CometChatMessageComposer widget using the headerView property Example Here is the complete example for reference:

Dart

CometChatMessageComposer(
      user: user,
      headerView: (context, user, group, id) {
        return Container(
          margin: EdgeInsets.only(
              bottom: 2,
              left: 8,
              right: 8),
          padding: EdgeInsets.all(8),
          decoration: BoxDecoration(
            color: Color(0xFFEDEAFA),
            borderRadius: BorderRadius.circular(8),
          ),
          child: Row(
            children: [
              Icon(
                Icons.volume_off,
                size: 20,
                color: Color(0xFF6852D6),
              ),
              Text(
                "User has paused their notifications",
                style: TextStyle(
                  fontSize: 14,
                  fontWeight: FontWeight.w400,
                ),
              ),
            ],
          ),
        );
      },
    )

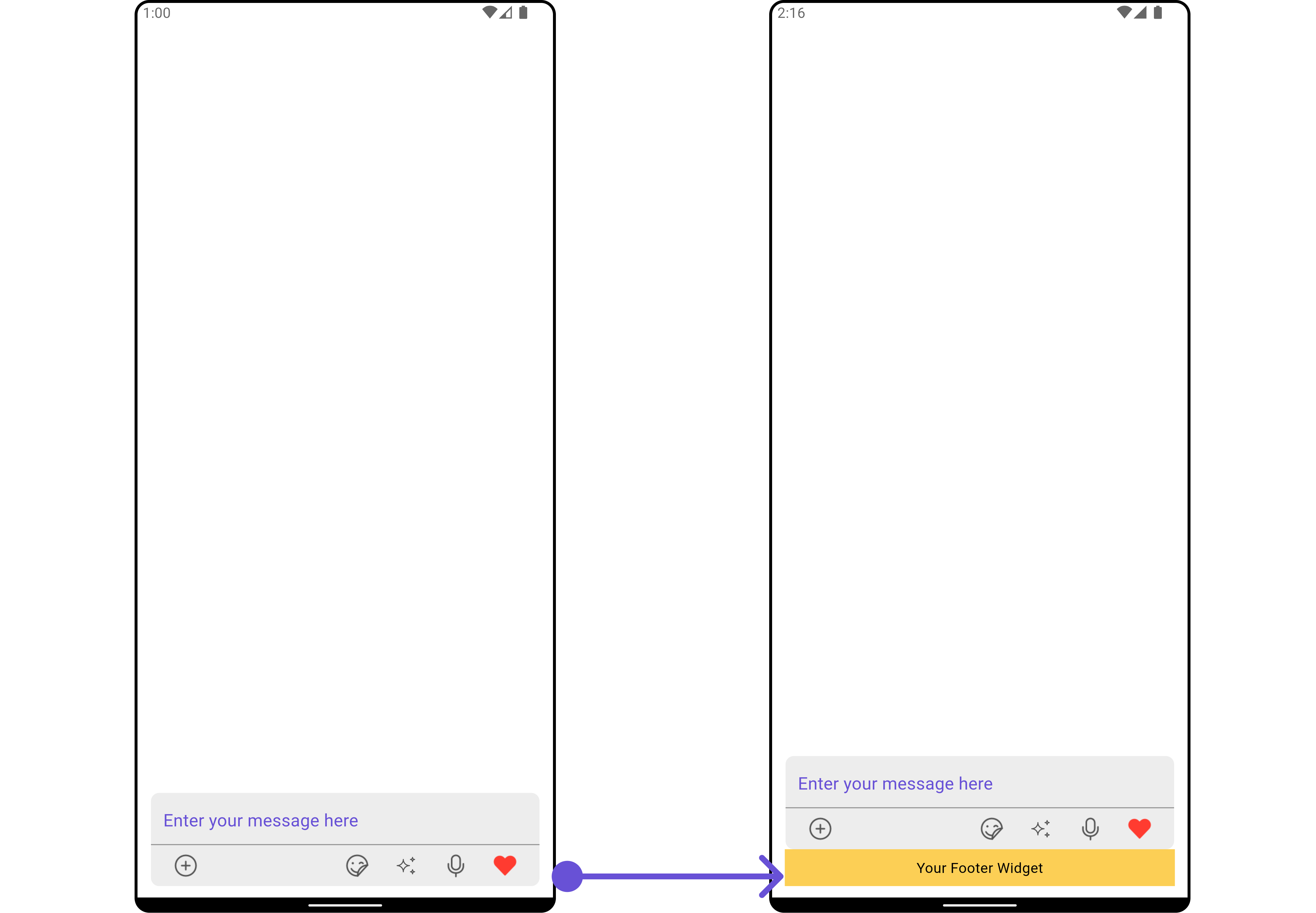

You can set a custom footer widget to the CometChatMessageComposer widget using the footerView property: Example Here is the complete example for reference:

Dart

CometChatMessageComposer(
  user: user,
  footerView: (context, user, group, id) {
    return Container(
      width: MediaQuery.of(context).size.width/1.08,
      color: Colors.yellow,
      padding: const EdgeInsets.all(8),
      child: const Center(child: Text("Your Footer Widget")),
    );
  },
)

Android
iOS

Overview

Usage

Integration

1. Using Navigator to Launch `CometChatMessageComposer`

2. Embedding `CometChatMessageComposer` as a Widget in the build Method

Actions

1. OnSendButtonClick

2. onChange

3. onError

Filters

Events

Customization

Style

1. CometChatMessageComposerStyle

2. MediaRecorder Style

3. AI Options Style

Functionality

Message Composer Properties

Advanced

TextFormatters

AttachmentOptions

AuxiliaryButton Widget

SecondaryButton Widget

SendButton Widget

Header Widget

Footer Widget

​Overview

​Usage

​Integration

1. Using Navigator to Launch CometChatMessageComposer

2. Embedding CometChatMessageComposer as a Widget in the build Method

​Actions

1. OnSendButtonClick

2. onChange

3. onError

​Filters

​Events

​Customization

​Style

1. CometChatMessageComposerStyle

2. MediaRecorder Style

3. AI Options Style

​Functionality

​Message Composer Properties

​Advanced

​TextFormatters

​AttachmentOptions

​AuxiliaryButton Widget

​SecondaryButton Widget

​SendButton Widget

​Header Widget

​Footer Widget

Overview

Usage

Integration

1. Using Navigator to Launch `CometChatMessageComposer`

2. Embedding `CometChatMessageComposer` as a Widget in the build Method

Actions

Filters

Events

Customization

Style

Functionality

Message Composer Properties

Advanced

TextFormatters

AttachmentOptions

AuxiliaryButton Widget

SecondaryButton Widget

SendButton Widget

Header Widget

Footer Widget
