Overview

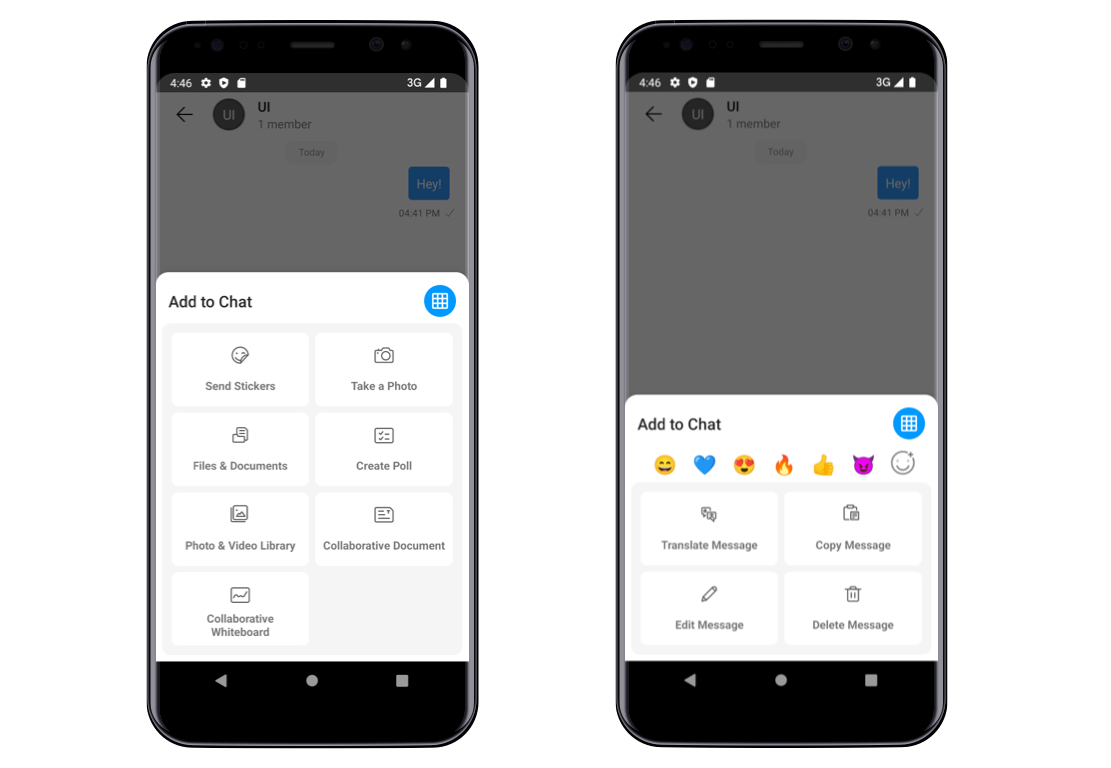

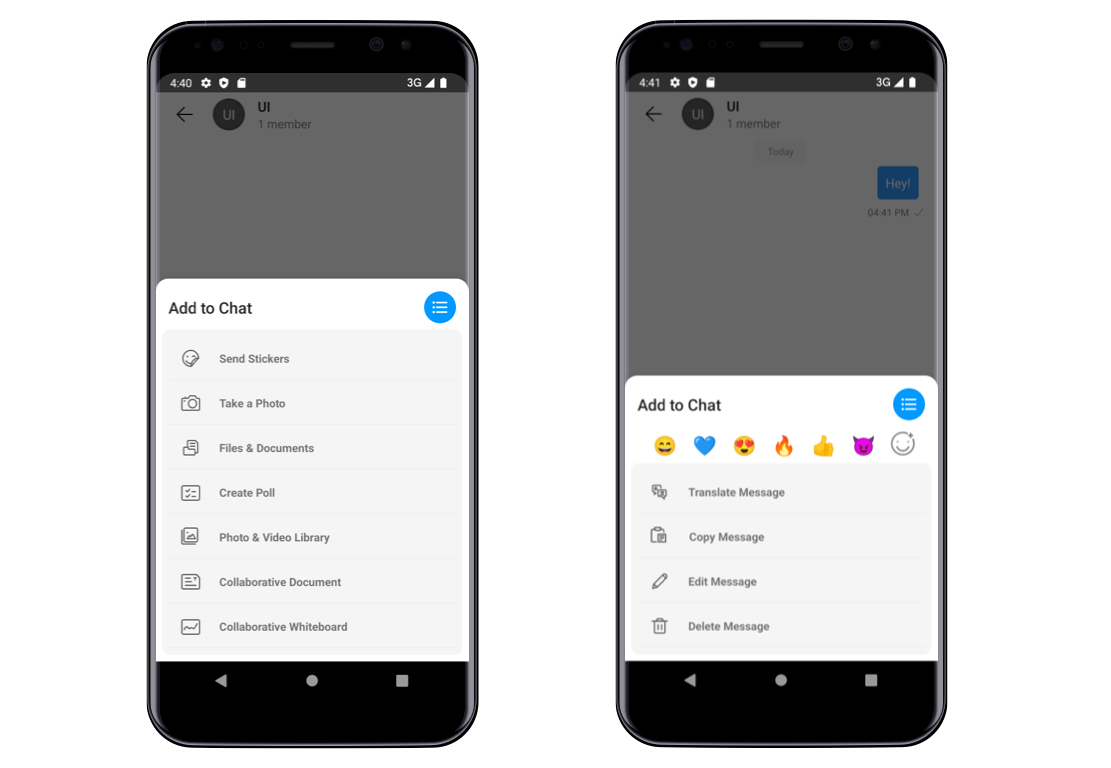

CometChatActionSheet is a component which presents options in a list and grid mode as per user’s choice. By default, CometChatActionSheet is an integrated into CometChatMessageComposer to allow users to send multiple types of media and custom messages.

​
Usage

CometChatActionSheet can be launched in a UI by adding below lines of code it into the java file.
  • Java
// syntax to create instance of CometChatActionSheet
CometChatActionSheet cometChatActionSheet = new CometChatActionSheet(context);
//syntax to create list of Action item need to be added in a Action Sheet
List<ActionItem> itemList = new ArrayList<>();
itemList.add(new ActionItem("id1","text1",R.drawable.icon));
itemList.add(new ActionItem("id2","text2",R.drawable.icon2));
//user can add as much as item they want in a Acionsheet

cometChatActionSheet.setList(itemList);
cometChatActionSheet.setLayoutMode(ActionSheet.LayoutMode.listMode); // it can be also set to grid mode

// to open Action Sheet
cometChatActionSheet.show();

//to close Action Sheet
cometChatActionSheet.dismiss();

​
Data Model

ActionItem class is a Data Model used to set Data in every Item of Action Sheet.
ParametersTypeDescription
idStringUsed to set id so that every item in a list can be uniquely identify.
textStringUsed to set name of the Item in a list.
startIcon@DrawableRes intUsed to set start icon in a list item.
startIconTint@ColorInt intUsed to set start Icon tint
iconBackgroundColor@ColorInt intUsed to set icon background color
textFontStringUsed to set text font
appearance@StyleRes intUsed to set text Appearance
textColor@ColorInt intUsed to set text Color
background@ColorInt intUsed to set Item background color
cornerRadiusintUsed to set item corner radius
  • Java
//how to create Actionitem object to render in a list
ActionItem item = new ActionItem("id", "text",R.drawable.icon);

//how to create ActionItem object with all the customization
ActionItem item = new ActionItem("id",R.drawable.ic_attachment,0,0,"text3",null,0,0,0,0));

​
Methods

​
Set List

MethodDescription
setList(List<ActionItem> list)Sets the list of action items to be displayed in action sheet.
  • Java
//syntax to create list of Action item need to be added in a Action Sheet
List<ActionItem> itemList = new ArrayList<>();
itemList.add(new ActionItem("id1","text1",R.drawable.icon));
itemList.add(new ActionItem("id2","text2",R.drawable.icon2));
//user can add as much as item they want in a Acionsheet

//syntax for setList(itemList)
cometChatActionSheet.setList(itemList);

​
Layout Mode

This method is used to set the default layout for the action sheet. It takes the LayoutMode which has two values as mention below.
  1. listMode
  2. gridMode
MethodDescription
setLayoutMode(@ActionSheet.LayoutMode String mode)Sets the default layout for the action sheet. It takes the LayoutMode which has two values. .listMode, .gridMode
setLayoutModeIcon(Drawable icon)Sets the layout mode icon.
setLayoutModeIconTint(@ColorInt int color)Sets the layout mode icon color.
setLayoutModeIconBackgroundColor(@ColorInt int color)Sets the layout mode icon background color.
hideLayoutMode(boolean isHidden)Used to hide/unhide layout mode icon.
  • Java
//syntax to set listMode
cometChatActionSheet.setLayoutMode(ActionSheet.LayoutMode.listMode);
//syntax to set gridMode
cometChatActionSheet.setLayoutMode(ActionSheet.LayoutMode.gridMode);

//syntax for set layout mode icon
cometChatActionSheet.setLayoutModeIcon(getResources().getDrawable(R.drawable.icon));

//syntax for  setLayoutModeIconTint
cometChatActionSheet.setLayoutModeIconTint(getResources().getColor(R.color.accent50));

//syntax for  setLayoutModeIconTint
cometChatActionSheet.setLayoutModeIconBackgroundColor(getResources().getColor(R.color.primary));

//syntax for hideLayoutMode
cometChatActionSheet.hideLayoutMode(false);

​
Title

MethodsDescription
setTitle(String title)Sets the title in Action Sheet
setTitleColor(@ColorInt int color)Sets the title color in Action Sheet
setTitleFont(String font)Sets the title font in Action Sheet
setTitleAppearance(@StyleRes int appearance)Sets the title appearance in Action Sheet
  • Java
////syntax to setTitle
cometChatActionSheet.setTitle("Action Sheet");

//syntax to setTitleFont
cometChatActionSheet.setTitleFont("font/Roboto-Regular.ttf");

//syntax to setTitleColor
cometChatActionSheet.setTitleColor(getResources().getColor(R.color.accent50));

//syntax to setTitleAppearance
cometChatActionSheet.setTitleAppearance(R.style.Text1);
Background
MethodDescription
setBackground(@ColorInt int color)This method will set the background color of Action Sheet.
setBackground(Drawable drawable)This method will set the background drawable of Action Sheet.
  • Java
// syntax for setBackground(@ColorInt int color)
cometChatActionSheet.setBackground(getResources().getColor(R.color.background));

// syntax for setBackground(Drawable drawable)
cometChatActionSheet.setBackground(getResources().getDrawable(R.drawable.background));
Events To receive the Callback when the user clicks on any item or reaction on an action sheet.
InterfacesDescription
onReactionClick(Reaction reaction)Triggers when a reaction is Tapped
onActionItemClick(ActionItem actionItem)Triggers when any item is Tapped from a list of Action sheet
  • Java
cometChatActionSheet.setEventListener(new CometChatActionSheetListener() {
            @Override
            public void onActionItemClick(ActionItem actionItem) {

            }
        });
